High Power Winding Machine Featuring Robust Blue and Green Aesthetics

Product Description

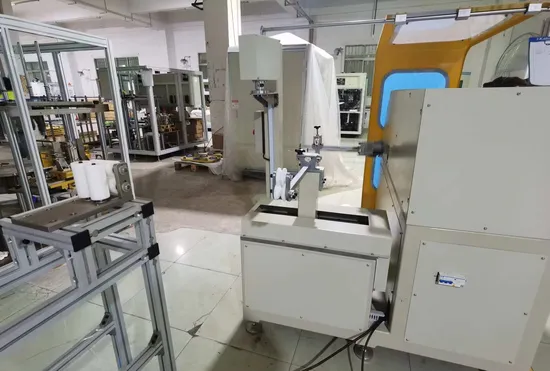

Introducing the Electric Winding Machine (DLM-0866), a marvel of engineering crafted to elevate your winding processes to unprecedented heights of precision and efficiency.
Presenting the DLM-0866 Coil Winding Machine, meticulously crafted for unparalleled precision and efficiency in every coil winding task.
1. Advanced Array Motor: Unleash the power of dynamic performance with our state-of-the-art array motor, designed to revolutionize your operations.
2. Automatic Computer Control: Experience seamless automation with our sophisticated computer control system, designed to streamline your workload.
3. Super Quality: Experience unmatched excellence in design and function, ensuring the highest standards of quality are met consistently.
Introducing the DLM-0866 Large Winding Machine, where grand dimensions meet impeccable functionality for superior performance.
1. This horizontal and automatic winding machine, equipped with serial parallel coil formers, is perfectly suited for a versatile range of AC and DC motor stator coils, as well as inductance coils.
2. At its core, a single board computer expertly handles tasks including zero resetting, traversing, and skipping, ensuring precise alignment and flawless operation.
3. User-Friendly Control Panel: Effortlessly customize your settings by adjusting wire diameter, number of turns, traverse and skipping distances, tailored to your specific needs.
Technical Parameter: Discover the superior specifications that define the exceptional capabilities of our innovative machine.
Suitable Wire Diameter: Engineered to handle wire diameters ranging from 0.1 to 1.2 mm with exceptional ease and precision.
Winding Width: Offers a versatile winding width from 0 to 30 mm, catering to a diverse array of applications with finesse.
Winding Diameter: Designed to accommodate winding diameters between 25 to 180 mm, ensuring maximum flexibility for various projects.
Effective Length of Series-mode Axis: Provides an expansive range of 500 to 600 mm, delivering enhanced performance and adaptability.
Return Diameter of Former: Supports return diameters spanning 210 to 280 mm, optimizing efficiency and effectiveness across tasks.
Rotation Speed: Propel your operations forward with a robust rotation speed of 3200 R.P.M., ensuring rapid and reliable performance.
Power Source: Depend on a reliable 220V 50Hz power source, guaranteeing consistent and stable operation at all times.
Pressure of Air Supply: Operates within an air supply pressure of 0.5-0.8 MPa, ensuring optimal performance and efficiency.
Power: Command the power of 750W to execute tasks with unparalleled precision and unwavering reliability.
Dimension (L x M x H): Compact yet efficient, with dimensions of 1450 x 912 x 1200 mm, designed for seamless integration into your workspace.
Weight: Approximately 800 kg, embodying robustness while remaining manageable for various industrial settings.

---
