Highly Reliable Concrete Pump Truck Syg5441thb 560c-10 56m for Hot Sale

US$193,400.00

1-2 Pieces

US$193,000.00

3+ Pieces

Basic Info.

Model NO.

SYG5441THB 560C-10

Type

Concrete Pump

Shotcrete Type

Wet

Machining Process

Hydraulic

Structure

Cylinder Type

Productivity

200/137 M³/H

Feeding Height

1380mm

Vibrating Amplitude

2.6mm

Certification

ISO9001: 2000

Condition

New

Color

Red

Dimension(L*W*H)

14050*2500*4000mm

Max. Vertical Conveying Distance

56m

Max. Horizontal Conveying Distance

51m

Weight

43600 Kg

Pressure

8.3/12 MPa

Reach Depth

36.6m

Stroke Length

2100 mm

Hydraulic System Oil Pressure

32 MPa

Oil Tank Capacity

610 L

Engine Max Net Power

290/1600 Kw/Rpm

Capacity of Fuel Tank

390 L

Max.Speed

90 Km/H

Emission Standard

Euro III

Delivery Cylinder Diameter

260 mm

Unfolded Reach

15.2 M

Transport Package

Standard Ocean Freight

Specification

14050*2500*4000mm

Trademark

Top brand

Origin

China

HS Code

8705909100

Production Capacity

350piece/Year

Packaging & Delivery

Package Size

1405.00cm * 250.00cm * 400.00cm

Package Gross Weight

463600.000kg

Product Description

product title

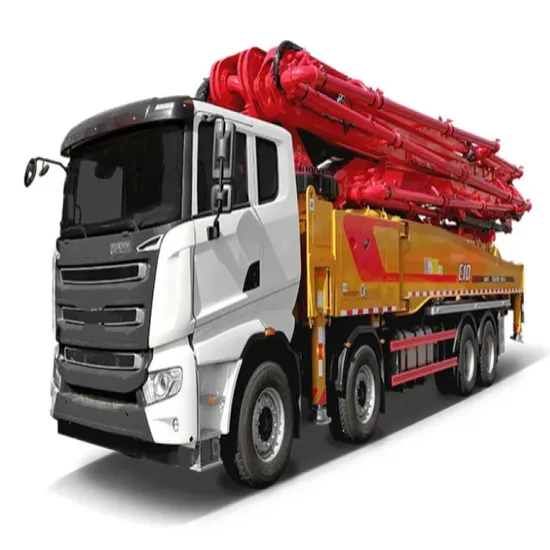

SYG5441THB 560C-10 Concrete Pump Truck
Product Description
Highly Reliable
· International authoritative-certificate lighthouse factory & world-class manufacturing capability
· Optimized essential parts with ultra-high-strength steel · Open hydraulic system & high configuration
· Stable signal & precise control
Strong Pumping
· A 10% increase in pumping efficiency
· smoother flow, less blockage, and meet long-time pumping need
· Dual-purpose machine: quickly transforms into a line pump
· Various boom types & flexible working posture
· Less site limitation, smaller footprint, more comprehensive placement range
Extremely Economical
· Advanced fuel combustion & intelligent power matching technology
· The best cost performance choice
· Easy maintenance, cost-saving and time-saving
· The industry-leading most extended service life of wear parts
Product Parameters

Item	SYG5441THB 560C-10
Empty Weight	43600 kg
Vertical reach	56 m
Horizontal reach	51 m
Depth reach	36.6 m
Unfolded reach	15.2 m
Theoretical output	200 m³ /h (137 m³ /h)
Theoretical pressure	8.3 MPa (12 MPa)
Delivery cylinder diameter	260 mm
Stroke length	2100 mm
Hydraulic system oil pressure	32 MPa
Oil tank capacity	610 L
Water tank capacity	600 L
Volume of hopper	700 L
Engine max net power	290/1600 kW/rpm
Capacity of fuel tank	390 L
Displacement	12.8 L
Max.speed	90 km/h
Emission standard	Euro III

Detailed Photos
