Basic Info.
Type
Tool Milling Machine
Certification
CE, ISO 9001
Horizontal Table Size (L X W)
400*800mm
Vertical Table Size (L X W)
250*950mm
Spindle Speeds (H. & V., Variable)
40-2000rpm
Machine Dimensions (L x W x H)
182*164*171cm
Transport Package
Plywood Case
Specification
1500*1700*1800mm
Production Capacity
200units/Month
Product Description
Product Description
Feature:

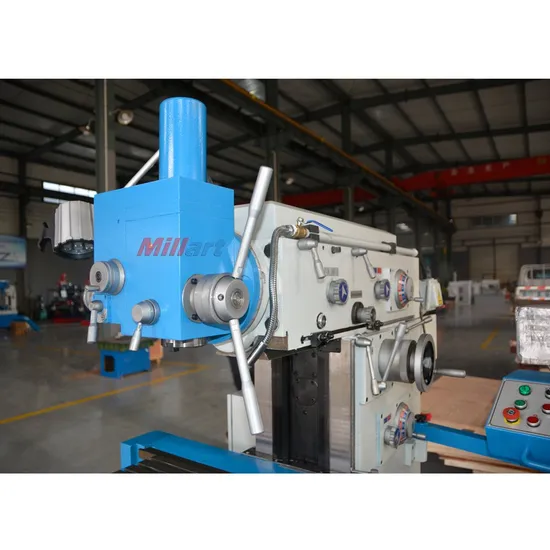

This machine is designed to be a middle-sized Universal Tool Milling Machine, can perform procedures such as milling, boring, drilling, and slotting, etc, and is suitable for machining cutter, fixture, die and mould, and other components with complex figuration. With the aid of various special attachments, it can machine all kinds of components such as spiral, arc, gear, rack, spline, and so on.
1. Original structure, broad versatility, high accuracy, easy to operate.
2. With various attachments to extend range of application and raise utilization.
3. Model XS8140A: with Programmable digital display system, resolving power is up to 0.01mm.
Specification:
Model | UM400B |
Table | Horizontal table size | 400*800mm |
| Vertical table size | 250*950mm |
Travel X,Y,Z axis | 500/350/400 |
Universal table | Horizontal swivel | ±360° |
| Vertical swivel | ±30° |
| Front and back swivel | ±30° |
Vertical mill head | Spindle travel | 60mm |
| Spindle swivel | ±90° |
Horizontal spindle | Taper | ISO 40 |
| Spindle line to ground | 1330mm |
| Min distance from spindle line to table | 35mm |
Vertical spindle | Taper | ISO 40 |
| Min distance from spindle nose to table | 5mm |
Spindle speed (Vertical and horizontal) | 18steps 40-2000RPM |
Feed rate | 18steps 10-500mm/min |
Vertical spindle feed rate | 3steps 0.03-0.12mm/rev |
Main motor and feed motor power | 3KW/1.5KW |
Work table max load and tools max load | 400KG/500KG |
Dimensions | 182*164*171CM |
Net weight | 2200KG |
Standard accessories:
Complete tools -with the machine |
Milling cutter arbors and washers |
Reducing sleeves |
Spring collets and collet chuck 2/3/4/5/6/8/10/12mm |
Universal angular table |
Optional accessories:
F11-125A Dividing head |
QH125 Vice |
TSL250 Rotary table |
QH160 Vice |
TSL320 Rotary table |
3 Axis DRO |
Ball lead screw |
Company information:
Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.
Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
>>
