User-Friendly Electric Hydraulic Jacks with Wide Application Range

US$1,050.00
1-9 Sets
US$925.00
10+ Sets

Basic Info.

Application
Tank Lifting Machine
Type
Electric Hoist
Sling Type
Chain
Lift Speed
2~8m/min
Maximum Lifting Height
4~8m
Chain Falls
2
Certification
CE, ISO9001:2000
Condition
New
Color
Orange
Product Name
Electric Hoist
Rated Lifting Capacity
10t
Min Height
4m
Motor Power
500W
Customized Support
OEM, ODM
Lifting Speed
0.09min/Meter
Transport Package
Export Package
Specification
Customized
Trademark
WINCOO
Origin
Jiangsu, China

Product Description

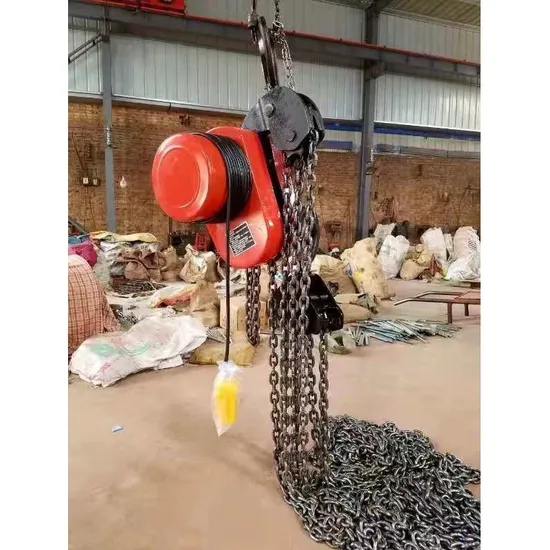

Low Speed Electric Chain Hoist
Product Overview
Large petrochemical storage tanks are usually constructed by lifting and flipping. The key to the inversion process is the lifting of the tank body, and there are many types of specific processes and supporting equipment. This paper mainly introduces the use of electric hoist group lifting inversion method in the manufacture of large storage tanks, using a new type of electric hoist as lifting equipment, and adding a fine-tuning circuit in the control system. The system has the advantages of smooth lifting, good synchronization, fast construction speed, low equipment cost, high efficiency, good safety self-locking function, easy installation quality control and so on. In the construction of large storage tank, this construction method has high popularization and application value.
FEATURES AT A GLANCE
Tank Lifting
PRODUCT SPECIFICATIONS
Rated lifting capacity
10 tons
Lifting speed
0.09min/meter
Lifting height
4m-8m
Motor model
YHPE-500
Motor power
500W
Motor speed
1380R/Min
Voltage
380V
Hoist model
HS10
Total weight
90-124KG

PRODUCT CONFIGURATION
1 Motor
8 Pin Bush
15 Gear Piece
22 Steel Bushing
29 Down-hook Shelf
2 Pin Gear
9 Bearing Collar
16 Spline Gear
23 Guide Wheel
30 Pulley
3 Pin Wheel Housing
10 Bearing Collar
17 Macroaxis
24 Bolt
31 Pulley axle
4 Cycloidal Gear
11 Up-hook Beam
18 Side Fascia
25 Ring Shield
32 Roller Pin
5 Spacer Ring
12 Lifting Hook
19 Housing
26 Lifting Chain
33 Ring Shield
6 Eccentric Bearing
13 Lifting Chain Wheel
20 Minor Axis
27 Baffle
34 Down-hook Beam
7 Hinge Pin
14 Bracing Stick
21 Pin Roller
28 Lifting Chain Plate
35 Chain Stopper Plate
