Precision CNC Cutting Tools for High-Tech Industrial Machining

Product Description

Explore the Hot Sale High Efficiency Vertical CNC Milling Lathe Machine: Your Premier Manufacturing Solution
Product Description

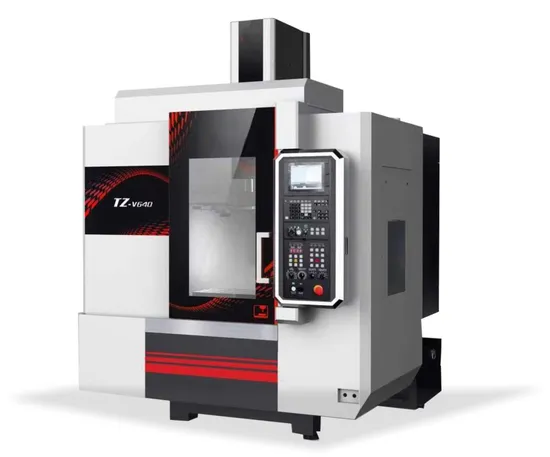

Model: TZ-V640
Presenting the Line Rail Vertical Machining Center TZ-V640, a revolutionary advancement in CNC technology. Designed with state-of-the-art principles of ergonomics, precision, and automation, this next-gen tool has undergone rigorous simulations and extensive prototyping to achieve unparalleled performance. Widely utilized across industries like medical, UAV, new energy auto parts, precision fixtures, and automation equipment parts, it stands as the ideal choice for mass-producing precision components.
Product Parameters

Model		TZ-V640	TZ-V850	TZ-V855	TZ-V1165	TZ-V1270
Worktable size L*W	(mm)	700x420	1000x500	1000x550	1100x530	1200x600
Work table Max. loading	kg	350	400	500	500	600
T-slots size (N×W×D)	mm	3x18x125	5x18x90	5x18x90	5x18x90	5x18x100
X/Y/Z axis travel	mm	600/400/450	800/500/500	800/500/550	1100/650/600	1200/700/700
X/Y/Z axis feed speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw	2/2/3 kw	2/2/3 kw	2/2/3 kw	3/3/3 kw
X/Y/Z axis roller Guide	mm	30/30/35	35/35/35	35/45/45	35/45/45	45/45/45
Spindle taper		BT40	BT40	BT40	BT40	BT40
Max. spindle speed	rpm	12000	12000	12000	12000	12000
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11
Distance from spindle nose to workbench	mm	150-610	120-620	120-670	150-750	140-840
A.T.C capacity	pcs	24	24	24	24	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine weight	kg	4300	5000	6000	6800	8100
Machine size (L*W*H)	mm	2000*2400*2600	2500*2250*2650	2600*2500*2650	2700*2500*2750	3100*2760*3100

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
• Superior processing conditions ensure optimal production environments.
Our suite of imported machinery-including horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines-ensures exceptional workpiece accuracy. This dramatically enhances assembly precision and extends accuracy durability.
• State-of-the-Art Detection Methods
Positioning accuracy is meticulously verified and finely tuned using advanced laser technology, adhering strictly to the German VDI3411 inspection specification (5 tests per parameter).
Every machine tool undergoes rigorous processing tests before it leaves our factory, ensuring compliance with and surpassing actual processing accuracy standards.
Product sample
• This CNC machining center seamlessly integrates milling, drilling, and tapping functionalities.
• Capable of CNC machining various metal profiles including aluminum, steel, copper, and non-metallic materials.
• Perfect for industries such as 3C electronics, rail transportation, aerospace, and linear module guide rails.
Packaging & Shipping
•Highly Protective Packaging
•Enhanced Structural Stability
•Eco-Friendly and Recyclable Packaging
Professional Team
FAQ
1. What are the Payment Terms?
A: Our payment terms include T/T, with a 40% deposit upon ordering and a 60% balance payment before shipment.
2. What are your trade terms?
A: We accept FOB, CFR, and CIF trade terms.
3. What is the delivery time?
A: Standard machines can be prepared within 30 days. Special machines may take longer. Place your order according to the timeline we provide.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, and we offer a one-year warranty.
5. How are the machines packaged?
A: Machines are securely packed in standard wooden cases.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for you. Alternatively, you can select the desired model yourself.
You can also send us your product drawings, and we will recommend the most suitable machines for your needs.

---
