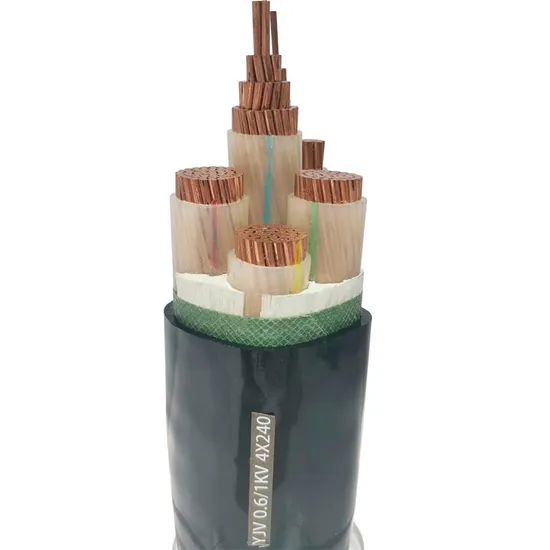

Low Voltage 0.6/1kv 4 Core 4X240mm 4X240mm2 4cx240mm2 XLPE/PVC LV Copper Power Wire Cable

Product Description

Product Description
Factory wholesale best quality copper power wire 4cx240mm2 xlpe/pvc lv cable
Conductor: Stranded Copper
Insulation/Jacket: XLPE/PVC
Armoured: SWA(Steel Wire Armoured) / STA(Steel Tape Armoured) or Non-Armoured
Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Section Area: 1.5mm2-800mm2
Standard: IEC 60502, BS 7870, GB/T12706 or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, School, Hospital, Underground and so on.We can customize
the size according to your requirement

HIGH ELECTRICAL CONDUCTIVITY COPPER OR ALUMINIUM CONDUCTOR Copper or aluminium stranded(Class 2) conductors according to lEC 60228
	HIGH RESISTANCE PVC/XLPE INSULATION Available with Cross-linked Polyethylene(XLPE)or Polyvinyl Chloride(PVC) insulation
UV RESISTANCE & FLAME RETARDANT PVC JACKET Provided with flame retardant PVC jacket to pass flame propagation test to lEC60332-1
	CUSTOMIZED DESIGNS Available in Armoured/Non-armoured and Shielded/Non-shielded constructions

Cross Section	Stranding	Approx Weight	Approx Overall Diameter	Current Rating Laid Direct
mm²	mm	kg/km	mm	amp
4 x 2.5	7/0.53	351	12.88	32
4 x 2.5	7/0.67	429	14.43	42
4 x 6.0	7/1.04	670	17.87	69
4 x 10	7/1.35	998	20.1	92
4 x 16	7/1.70	1,272	22.4	119
4 x 25	7/2.14	1,940	27	152
4 x 35	7/2.52	2,390	30.1	182
4 x 50	19/1.78	2,925	31.5	217
4 x 70	19/2.14	4,200	37.4	266
4 x 95	19/2.52	5,335	40.9	319
4 x 120	37/2.03	6,925	46.6	363
4 x 150	37/2.25	8,200	50.2	406
4 x 185	37/2.52	9,975	55.8	458
4 x 240	61/2.52	12,700	62.5	529
4 x 300	61/2.85	15,275	67.4	592
4 x 400	61/3.20	19,875	77	667

Quality Inspection

Company Profile
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane Cables and Other Special Use Cables.
