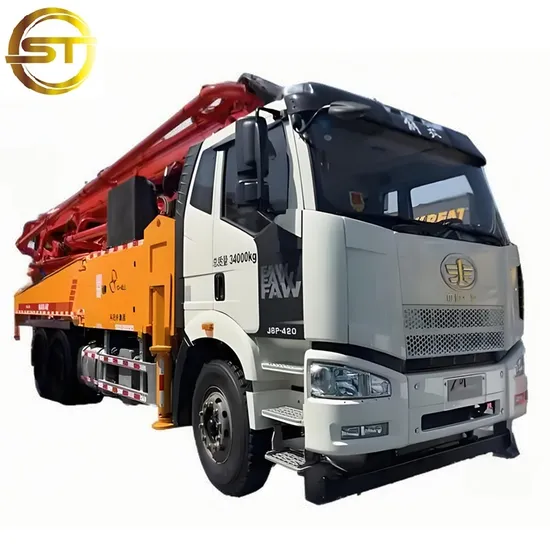

Customized FAW 70m Concrete Pump with Truck Boom Concrete Pump Truck

Product Description

Customized FAW 70m Concrete Pump With Boom Concrete Pump Truck

Chassis
Chassis	FAW J6P 8X4
Engine model	Weichai brand WP12.430E22
Engine power	430HP
Wheelbase	4400+1800+1435
Tire	315/80R22.5
Emission standards	Euro-II
Cab	Left/Right cab
Boom system
Maximum vertical height of boom (M)	38
Horizontal distribution radius of boom (M)	34
Boom arm number	5 sections
Depth of distribution (M)	25.7
Rotating angle of each arm	90°/180°/180°/235°/235°
First arm length(MM)	7800
Second arm length(MM)	6500
Third arm length(MM)	6250
Forth arm length(MM)	6700
Fifth arm length(MM)	6700
Electric Control System
Working voltage:	24
Power Supply	24
Hydraulic transmission system
Type of hydraulic system	Open type
System working pressure (Mpa)	31.5
Hydraulic fuel tank capacity (l)	420
Cooling mode of hydraulic oil	Forced-air Cooling
DIMENSIONS&WEIGHT
Total length (MM)	10695
Total width (MM)	2550
Total height (MM)	3990
Total weight (T)	27.7
Pumping system
Max.Theoretical Output	100
Form of concrete distribution valve	S valve
Dimension of allowable maximum aggregate (MM)	40
Lubricating method	Centralized lubrication

Qingdao Sata Import And Export Co.,Ltd. is professional perfomance trucks,machines and truck parts supplier. Our registered trademark is "SATA".We have been equipped with advanced manufacturing and testing facilities and had been certificated with ISO9001:2015.Due to goodquality and first-rate service, we have established firm and friendly cooperation with many customers all around the world, including Europe, America, Middle East etc. With the management principle of "Equipped with high technology, succeeded with high quality".We long for more potential clients,more opportunities to step forward,and we hope to create a better future.
As a business partner, SATA is your best choice!
Trucks Package&Shipment
Q: OEM or ODM is avaliable?A: Yes, we can produce with your logo.Q: How is your delivery time?A: If standard machine, the delivery time will be 7-15 days, if customized version, that depends on the customized configuration time.Q: Which payment terms can you accept?A: Normally we can work on TT or LC.(1)T/T: 30% prepayment to start production and 70% balance shall be paid before shipment;(2)L/C: 100% irrevocable LC at sight without "soft clauses" from an international recognized bank can be accepted.Q: Which incoterms 2010 terms can you do?A: As per client's requirement, we can handle all INCOTERMS 2010 terms, and we normally work on regular terms such as FOB.CFR.CIF.CIP.DAP.Q: What logistic ways you can work for shipment?A: We can ship machinery by various transportation ways:(1)Mostly, the machine will go by sea such as container ship (include special container flat rack) or Ro-Ro / Bulk ship;(2)For inland neighborhood countries of China can send by road or railway;(3)For the spare parts in urgent requirement we can send it by international courier service such as DHL. FEDEX, TNT Or UPS.

---
