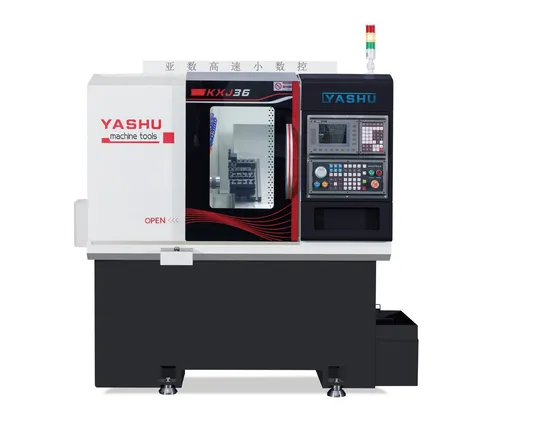

| KX-36J CNC LATHE MACHINE | |||
| It is suitable for batch production and application of copper, iron, aluminum and stainless steel bars within 35mm, and automatic batch production of forging parts and other granules within 50mm.Adopts a number of patented technologies such as high rigidity and anti-deformation structure, which is suitable for processing products with single-side cutting amount less than 2mm, precision tolerance within ±0.01mm and finish degree of 1.6.Widely used in hard rail CNC lathe, CAM automatic lathe and hydraulic lathe upgrading, automatic production to save labor costs and improve the quality of products. | |||
| Application scope of processing | Normal Use Value | Maximum Value | |
| Spindle bore | φ35mm | φ36mm | |
| Repositioning accuracy | ±0.01mm | ||
| smooth finish | 1.6RA | ||
| Single side cut | 2mm | 3mm | |
| Spindle speed | 3500r/min | 4000r/min | |
| Granular gripping diameter | φ40mm | φ50mm | |
| X axis travel | 600mm | ||
| Z axis travel | 220mm | ||
| X/Z axis Traverse | 20m/min | 30m/min | |
| Turning diameter | φ350mm | ||
| High center of tool rest | 40mm | ||
| Processing length with supporting mouth | 120mm | ||
| The knife specifications | 16mm | ||
| Machinery Specification | |||
| Specification | Parameter | Brand | |
| Slant bed degree | 30° | ||
| Tool form | Row of knives | ||
| Guide rail | 25Linear guideway | Taiwan Hiwin | |
| Ball screw | 25 ball grinding precision class | Taiwan | |
| Ground to spindle center height | 1080mm | ||
| Overall dimensions (machine) | 1400*1200*1650mm | ||
| Weight | 1500kg | ||
| Spindle motor | 3kw | YASHU | |
| CNC Control System | 820Ti | NANJINGKT | |
| Total Power | About3.5kW | ||
| Clamping way | Hydraulic clamping | ||
