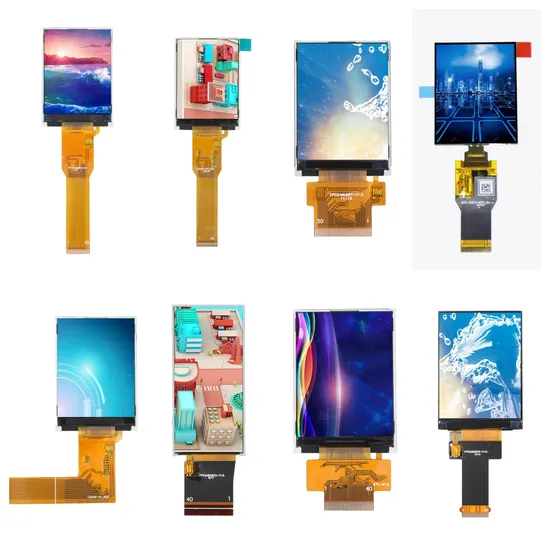

Indoor Screen Panel 2.4 Inch Color LCD Display Jzh24ml863-45A Module 240*320

Product Description

Company qualification
The introduction of Shenzhen Jinzhaohui Technology Co., Ltd. cutting-edge products - micro OLED display and high score tft lcd display. The company was founded in 2012, is a professional engaged in TFT LCD module, OLED display module, industrial human-machine interface hardware and software development, design, production, sales of high-tech enterprises. The TFT-LCD display module has high score highlighting technology for different scenes to provide clear and clear images for your use. Active matrix technology ensures the responsiveness and accuracy of the display, making it a perfect choice for a wide range of applications. Whether you are using it for industrial automation, medical devices or consumer electronics, this TFT-LCD display module is sure to impress you. At Shenzhen Jinzhaohui Technology Co., LTD., we pride ourselves on quality and innovation. Our team of experts work tirelessly to ensure that our products meet the highest standards of excellence. We use only the best materials and the latest manufacturing techniques to create products that are reliable, durable, and easy to use. Therefore, if you are looking for high quality TFT-LCD display module, then Shenzhen Jinzhaohui Technology Co., Ltd. is the best choice. Our different sizes of TFT-LCD Active Matrix and oled LCD displays are the perfect choice for anyone demanding the best. Contact us today to learn more about this amazing product and how it can benefit your business.
Product Features

Display Mode	Transmissive type
Display Mode	2.4'' Active matrix TFT-LCD
Display Format	Graphic 240*3RGB*320t-matrix
Display color	262K colors
Luminance	600 cd/m² (Typ)
Interface	MCU/SPI+RGB parallel interface
Viewing Direction	12 'CLOCK (Gray Scale Reverse)
Back Light	Light Emitting Diode (LED), 6s connected in parallel

Mechanical Specification

Item	Specifications
Dimensional Outline	42.72(W)*60.26(H)*2.5mm FPC not include
Resolution	240(W)*3(RGB)* 320(H)pixels dots
LCD Active Area	36.72(W)* 48.96(H) mm
Pixel Size	0.153(W)* 0.153(H) mm

Weight

T.B.D g

Operating temperature	-20 - 70 ºC
Storage temperature	-30 - 80 ºC

---
