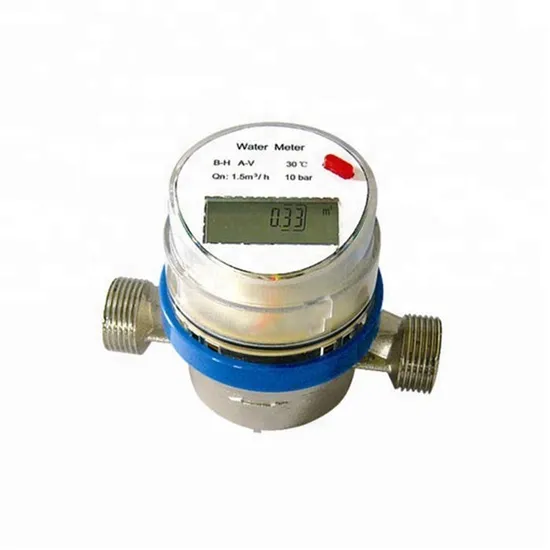

Single Jet Dry Type Vane Weel Pulse Transmitting Cold (Hot) Water Meter

Product Description

Single Jet Dry Type Vane Weel Pulse Transmitting Cold (Hot) Water Meter
Product Description

Operating condition:	PN: 1.0(10bar)
The water temperature:	Cold water up to 40ºC and hot water up to 90ºC
Standard:	ISO9001, ISO4064
Medium Pressure:	General Water Meter
Medium Temperature:	Cold(Hot) Water
Size:	DN13~DN40mm
Work Environment:	Liquid Sealed Water Meter
Counter Instructions :	Digital and Analogue
Level Measurement:	B
Application:	Measuring the volume of cold potable water passing through the pipeline
Brand name:	MIDAS
Delivery detail:	within 20-30 days after receipt the 70% balance
Packing:	Carton, pallet and as per customer's requirement.

Application:
Measuring the volume of cold potable water passing through the pipeline whth an electric output meter.
Quality:
•Applied for remote automatic reading system.
Meter with pulse output: Available 1L, 10L, 100L or 1000L per pulse for choice.
•Water meter equipped with a Reed Switch Pulser which can be connected to remote reading systems. The Reed Switch Pulse sends out electric signals per a preset water quantity.
•Comes in several model variation, which indicate different pulse rates. To choose the variation best suited to your needs as per optional data in below diagram.
Working condition:
temperature:
≤90ºC for hot water meter
≤40ºC for cold water meter
Pressure: =1.6Mpa
Maximum Permissible Error:
•Between Qs.flowrate and Qt flowrate Max. reading error ±2%.
•Between Qt flowrate ( Not including Qt): Max. reading error ±5%
•In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
•In the upper zone from Qt inclusive up to and including Qs is ±2%
Reed-Switch Electric Date
•Switch voltage: 24VAC/ DC
•Switch current: 0.01A max
Maximum Permissible Error
Qmin→Qt(ex Qt)=±5%;
Qt→Qs(both included)=±2% or ±3%(hot water)
Qmin=Min Flow, Qt=Transition Flow, Qs= Max Flow.

Output Date

Size	pulse output
	1L/Pulse	10L/Pulse	100L/Pulse	1000L/Pulse
13mm	v	v	v	v
20mm	v	v	v	v
25mm		v	v	v
32mm		v	v	v
40mm		v	v	v

Main Technical Data

Type	Meter Size	class	Maxflow	Nominal Flow	Transition Flow	Min Flow	Min Reading	Max Reading
mm			m3/h		L/h		m3
LXSCY-13D	15	B	3	1.5	120	30	0.0001	99999
LXSCY-20D	20	B	7	2.5	200	50	0.0001	99999
LXSCY-25D	25	B	5	3.5	280	70	0.0001	99999
LXSCY-32D	32	B	12	6.0	480	120	0.0001	99999
LXSCY-40D	40	B	20	10	800	200	0.0001	99999

Dimensions and weight

Type	Size	Length		Height	Width	Connecting Thread		Weight
	DN	L	L1	H	W	Connectors	Body
	mm							kg
LXSCY-13	15	174/204	80/110	88	80	R 1/2	G 3/4 B	0.70
LXSCY-20	20	234	130	88	80	R 3/4	G 1B	0.85
LXSCY-25	25	280	160	96	80	R 1	G 1 1/4B	1.47
LXSCY-32	32	284	160	123	110	R 1/4	G 1 1/2B	2.56
LXSCY-40	40	331	200	123	110	R 1/2	G 2B	2.9
