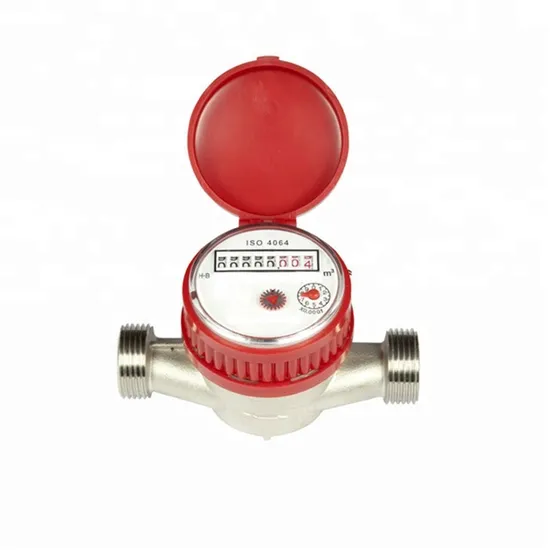

Low Cost Hot Water Flow Meter

Product Description

low cost hot water flow meter
Product Description

1	Product name:	Low cost hot water flow meter
2	Operating condition:	PN: 1.0(10bar)
3	The water temperature:	Cold water up to 40ºC and hot water up to 90ºC
4	Standard:	ISO9001, ISO4064
	Medium Pressure:	General Water Meter
5	Medium Temperature:	Cold(Hot) Water
6	Size:	DN13~DN32mm
7	Work Environment:	Liquid Sealed Water Meter
8	Counter Instructions :	Digital and Analogue
9	Level Measurement:	B
10	Application:	Measuring the volume of cold potable water passing through the pipeline
11	Brand name:	MDS
12	Certificate:	ISO,SGS and the third party inspection
13	Delivery detail:	within 20-30 days after receipt the 70% balance
14	Packing:	Carton, pallet and as per customer's requirement.

Quality:
•Liquid sealed register,small and light,easy reading, etc.
•Technical data conform to International Standard ISO4064 class B
Working condition:
temperature:≤40ºC
Pressure:≤1Mpa

Maximum Permissible Error:
Qmin→Qt(ex Qt)=±5%;
Qt→Qs(both included)=±2% or ±3%(hot water)
Qmin=Min Flow, Qt=Transition Flow, Qs= Max Flow.

Main Technical Data:
Tpye Meter Size class Maxflow Nominal
Flow Transitional
Flow Min Flow Min
Reading Max
Reading mm m3/h L/h m3

LXS-13D	13	B	3	1.5	120	30	0.0001	99999
LXS-20D	20	B	7	2.5	200	50	0.0001	99999
LXS-25D	25	B	5	3.5	280	70	0.0001	99999
LXS-32D	32	B	12	6.0	480	120	0.0001	99999

Dimensions and weight:
Type Size Length Heigh Width Connecting Thread Weight DN L L1 H W Connectors Body mm kg

LXS-13D	13	174/204	80/110	88	80	R 1/2	G 3/4B	0.70
LXS-20D	20	234	130	88	80	R 3/4	G 1B	0.85
LXS-25D	25	280	160	96	80	R 1	G 1 1/4B	1.47
LXS-32D	32	284	160	123	110	R 1/4	G1 1/2B	2.56

---
