350ton Pet Bottle Preform Injection Molding Machine

Product Description

350ton Plastic Injection Molding Machine (Model: ZX-350)
1,Photo
2, Technical Parameter

ZX-350	Injection Unit Date		A	B	C
	Screw diameter	mm	65	70	75
	Screw L/D ratio	/	21.5	20	18.7
	Theoretical shot volume	cm3	1161	1347	1546
	Shot weight(PS)	g	1068	1239	1423
	Injection rate	g/s	281	326	375
	Max.screw speed	rpm	160
	Clamping Unit
	Clamping force	KN	3500
	Toggle stroke	mm	650
	Space bettween tie bars	mm	675x675
	Min.mold thickness	mm	220
	Max.mold thickness	mm	720
	Hydraulic ejection stroke	mm	190
	Hydraulic ejection force	KN	71
	Others
	Hydraulic system pressure	Mpa	17.5
	Pump motor	kw	39.5
	Heating capacity	kw	22.6
	Oil tank capacity	L	450
	Machine dimensions	m	6.9x1.7x2.5
	Machine weight	Ton	10.4

3, Platen Dimension
4, Machine Dimension (ZX-350)
5, Technical Characteristics

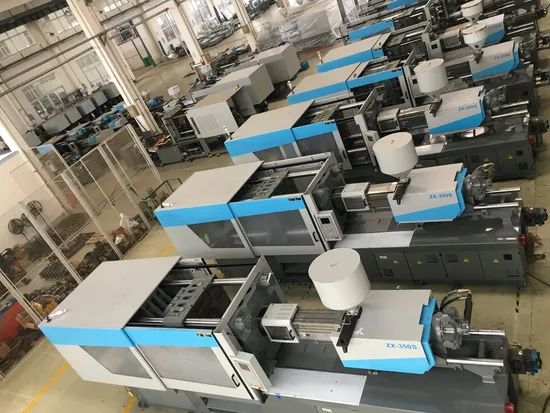

6, Machine Factory
7, Contact Information
Contact Person: Mr. Tony
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012
Mobile: +86 13656841356
Tel: +86 574 87082687
Website: zhenyuemachinery.en.made-in-china.com
Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.
3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.

---
