Silent Bloc Aircraft Rubber Vibration Buffer Radiator Shock Motor Conical Mounting/Mount

Product Description

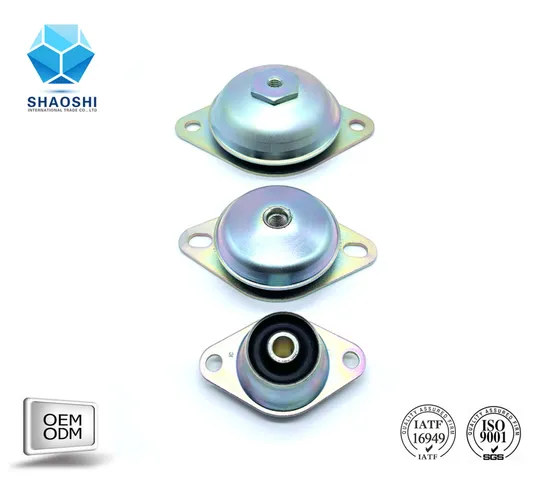

Silent bloc aircraft rubber vibration buffer radiator shock motor conical mount

Nominal maxima		Stiffness			Product No.	Material	Stop	Article No.
Axial			Radial
Fz max	Sz max	Cz	Cx,y	Cx,y
			Sz=0	Sz=4
[N]	[mm]	[N/mm]	[N/mm]	[N/mm]
2000	5	400	310	380	5018042	40NR 11	without	96517
2700	5	540	450	560	5018042	50NR 11	without	96518
4300	5	860	660	820	5018042	60NR 11	without	96131

Product image gallery Product advantage Long service life. Optimum settling. Auto-centring under axial load. RoHS-compliant.

Product Name	CONICAL MOUNT / Article list V MOUNT
Material	NR, NBR, SBR, CR, EPDM, Silicone, FKM/VITON, HNBR, etc. Q355D,Q355B, 45#,20#
Hardness	20-85 Shore A
Temperature	-40°C to +300°C
Size	According to the drawing or sample
Color	According to your requirement (Panton or RAL color card)
Application	Automotive, industrial, machinery, electrical, medical, household etc
Performance	Good sealing & damping;Waterproof;Aging/ozone/oil/pressure resistance;Low & high temperature resistance
Mode of Production	Compression, injection, injection transfer, extrusion, silicone liquid injection
Production Capabilities	Machines including 150T,200T,250T, 300T and 500T
Testing instruments	Vulcanization tester, tensile tester, rubber durometer, insulation resistance tester etc
Certificate	ISO9001:2016 IATF16949:2016
Rubber Compound	Can be FDA, RoHs or REACH approved, and free test slabs and hardness testers can be offered for customer's testing
Package	Inner plastic bag/outside carton/wooden pallets/ or any other special package as per customer's requirements.
Notes	Models and logos can be customized as your requirements; Designs and specifications are accepted.

Application
Conical mounts are ideal, resilient connecting elements for mounting engines, driven machinery and superstructures for both stationary operation and in vehicles and ships.
Properly positioned conical mounts for mounting engines lightly cushions the torque which reduces the vibrations introduced into the anchorages and thus contributes to a better running smoothness.
The weight should primarily be absorbed in the longitudinal axis (+Z). The range of conical mounts offers a large number of different designs for the optimal solution of all conceivable application/installation cases. Tear-off or separation protection is also thus possible. Installation Instructions
Fitting & installation
The conical mounts are designed to be secured by means of threaded fasteners ,Individual components permit slight adjustment to allow for in-situ offset It is important to ensure that the mating faces of the frame and the mass carried by the mount are flat and smooth ,Ensure that the underside of the flange is in full-surface contact with the mating face of the frame anchorage Position the mount relative to the static load in such a way that the inner metal part and the flange are preloaded relative to each other Avoid tensile loads or use the stop and centering washers to limit these loads. Company Profile
30+ years production experiences
- Who we are
1 hour to the Qingdao PORT
40 min to the QINGDAO AIRPROT
16949 -IATF International certification
28 production lines
15000² Prodcution areas
200 Employees
20 professional technician R&D dept
5,000,000 pieces monthly production capabilities
45 countries exported to globally
35 Years' production experiences for rubber and metal products
Certifications ISO 9001:2016 IATF16949:2016


Workshop display
Other product
FAQ
Q1:Are you a manufacturer or a trading company?
A: We are manufacturer. We can control quality and delivery better.
Q2: Can I bargin the price?
A:Yes. The price we send you is for your reference. We will offer you the final price according to your drawing specification and purchasing quantity.
Q3: What kind package you provice?
A: Cartons, pallets and customer requirements.
Q4: Can I get free sample?
A:Yes. The sample is free
Q5: When will you finish my order?
A: In general 1- 15days, after receiving the deposit .
Q6: May I visit your factory?
A: Yes. Welcome to visit us.
