Product Details
Product Description
Product Description

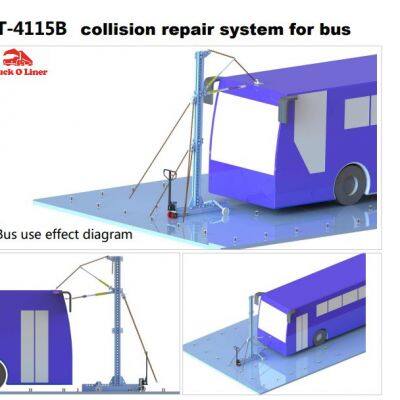

CT-4115B floor pulling system is a collision repair system for buses, it is an efficient equipment for correction and repair of buses chassis. It adopts the hydraulic pump station to provide power, and uses the hydraulic cylinder to work, which can quickly and efficiently repair the damaged cab.
Features:
Use the ground anchor to fix the working pull tower, which is fast, efficient, firm and reliable. At the same time, the cost is low.
The hydraulic pull tower adopts a 2-ton hydraulic cart, which is flexible and convenient to move and is not restricted by site conditions. The safe fixed support wheel ensures the safe and reliable movement of the pull tower.
Equipped with a rich and complete hydraulic system-wire-controlled hydraulic pump station, reverse pull cylinder, thrust cylinder, two-speed manual hydraulic pump station, etc., it can meet any accident buses collision repair.
The combination of reverse pull cylinder and thrust cylinder, plus the various steering adapters equipped, can meet the completion of push-pull operations during repair.
Equipped with a cab Aperture restraining bar, it can achieve multiple functions such as support and fixation of the door frame, straightening repair, etc.
High-quality dual-speed hydraulic sheet metal workgroup is fast and efficient, with high strength and power.
Electromagnetic induction heater can effectively help technicians quickly disassemble the relevant parts of the bus that are difficult to disassemble.
Specification
Anchor geometry parameters
| 7000X7000mm
|
pull tower length, width, height
| 1990X1020X3200-4115mm
|
pulling chain length including
| 2500、3500、5000、7000mm
|
Back pull cylinder
| 10 tons, stroke 300mm
|
Thrust cylinder
| 10 tons, stroke 257mm
|
Hydraulic pump station working pressure
| 700Mpa
|
air source pressure requirements
| 0.7-0.8Mpa
|
Hydraulic sheet metal workgroup hydraulic pump
| Dual speed, pressure up to 70MPa
|
Aperture restraining bar
| 800-2500mm
|
>>
