Basic Info.
Model NO.
hydraulic cylinder
Product Name
Single Acting Long RAM Hydraulic Cylinder Air Jack
Inner Diameter
28.7-190 mm
Pump
Hand Pump or Electric Pump
Usage
Petroleum, Construction, Metallurgy, Petrochemica
Electric Motor
220V or 380V
Use Area
Engineering Cobstruction,Bridge
Surface Treatment
Baking Paint
Extend Height
Stroke + Body Height
Model
Long Stroke Cylinder
Transport Package
Package
Specification
10ton, 20ton, 30ton, 50ton.
Production Capacity
1000pieces/Month
Product Description
Product Description
Lifting jack hand pump model FCY 50 Ton cylinder ram hydraulic jack
Designed for use in all positions.
High strength alloy steel for durability.
Chrome plated piston resists wear and corrosion.
Dust wiper on piston rod reduces contamination.
Baked enamel finish for increased corrosion resistance.
All cylinders are proof tested to 125% of capacity before leaving our factory.
10-100 ton cylinder bores are roller burnished to harden the surface and make it smoother.
10-200 ton cylinder models are spring return, 250-1000 ton cylinder models are load return.
Each cylinder has an HH-II 3/8"NPT male half coupler and dust cap.
Each cylinder has a flat grooved saddle.
Tilt saddle is available on request.
Product Parameters
Features and functions:1. Light weight, easy to carry2. Baked enamel finish for increased corrosion resistance.3. All the raw material specially heat-treated and processed by imported CNC lathes.4. Imported high quality seals to provide better protection to the cylinder. Making the cylinder not easy to wear.
FCY MODEL |
Model NO. | Tons(T) | Cylinder effective area(cm2) | Cylinder inside DIA(MM) | Cylinder Outside dia (mm) | Travel(mm) | Weight(kg) | Collapsed height(mm) | pump |
FCY-10 | 10 | 15.89 | 45 | 63 | 100 | 3.4 | 157 | Cp-180 |
FCY-20 | 20 | 33.16 | 65 | 88 | 100 | 6.2 | 160 | Cp-700 |
FCY-30 | 30 | 50.24 | 80 | 108 | 100 | 9.6 | 164 | Cp-700-2 |
FCY-50 | 50 | 78.5 | 100 | 128 | 100 | 12.6 | 166 | Cp-700-3 |
FCY-100 | 100 | 143.06 | 135 | 178 | 100 | 26.5 | 176 | Cp-800 |
FCY-200 | 200 | 302.5 | 196.3 | 247 | 100 | 65 | 181 | ZCB-700A |

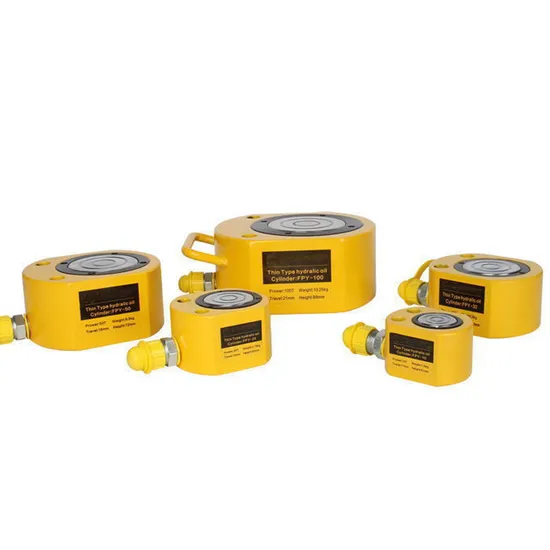

Feature&functions:
1. With the low height, it is fit for the operation condition of narrow and small space. It has short distance, and heighten for several times.
2. The surface of main shaft is processed with chromium hardening treatment, so that the service life is increased.
3. The main shaft has the automatic shortening function.
4. All YINDU series jack require a solid lifting surface for correct support. Using jack on surfaces such as sand, mud or dirt may result in jack damaged.
Model NO. | Tons(T) | Cylinder effective area(cm3) | Cylinder inside DIA(MM) | Cylinder Outside dia (mm) | Travel(mm) | Weight(kg) | Collapsed height(mm) | pump |
FPY-5 | 5 | 9.6 | 35 | 64*48 | 7 | 0.7 | 41 | Cp-180 |
FPY-10 | 10 | 10.89 | 45 | 83*62 | 11 | 1.6 | 53 | Cp-180 |
FPY-20 | 20 | 33.16 | 65 | 102*80 | 13 | 2.7 | 62 | Cp-180 |
FPY-30 | 30 | 50.24 | 80 | 125*105 | 14 | 5 | 66 | Cp-700 |
FPY-50 | 50 | 78.5 | 100 | 155*130 | 18 | 8.5 | 77 | Cp-700 |
FPY-100 | 100 | 143.06 | 135 | 206*175 | 21 | 19.25 | 93 | Cp-700 |
FPY-150 | 150 | 226.8 | 170 | 207 | 21 | 23 | 88 | CP-700 |
FPY-200 | 200 | 302.5 | 196.3 | 247 | 21 | 35.6 | 101 | CP-800 |
Feature&functions:1. Light weight, low profile design for use in confined spaces.2. Baked enamel finish for increased corrosion resistance.3. Plunger ring reduces contamination. Extending cylinder life.4. It is easy to carry, there are two holes on the surface of the oil vat for stability.
Model NO. | Tons(T) | Cylinder effective area(cm2) | Cylinder inside DIA(MM) | Cylinder Outside dia (mm) | Travel(mm) | Weight(kg) | Collapsed height(mm) | pump |
RSC-101 | 10 | 15.89 | 45 | 63 | 50 | 2.4 | 108 | Cp-180 |
RSC-201 | 20 | 33.16 | 65 | 88 | 50 | 4.4 | 111 | Cp-180 |
RSC-301 | 30 | 50.24 | 80 | 108 | 50 | 6.4 | 111 | Cp-700 |
RSC-501 | 50 | 78.5 | 100 | 128 | 50 | 9.4 | 116 | Cp-700 |
RSC-1001 | 100 | 143.06 | 135 | 178 | 50 | 20.4 | 126 | Cp-700-2 |
RSC-2001 | 200 | 302.5 | 196.3 | 247 | 50 | 42 | 131 | ZCB-700A |
Designed for use in all positions.
High strength alloy steel for durability.
Chrome plated piston resists wear and corrosion.
Dust wiper on piston rod reduces contamination.
Baked enamel finish for increased corrosion resistance.
All cylinders are proof tested to 125% of capacity before leaving our factory.
10-100 ton cylinder bores are roller burnished to harden the surface and make it smoother.
10-200 ton cylinder models are spring return, 250-1000 ton cylinder models are load return.
Each cylinder has an HH-II 3/8"NPT male half coupler and dust cap.
Each cylinder has a flat grooved saddle.
Tilt saddle is available on request. Company Profile
HEBEI TINGDAJIE MACHINERY TRADING CO., LTD is a professional manufacturer of Air Hydraulic Jacks & Tire Changers since 2001. We dedicate to be whole solution provider of heavy duty Vehicle Repair Tools ,especially for Truck&Bus. During last 20year's hard working, our experienced team always keep updating, and supplying to market with stable quality products and competitive prices. Tell us your purchasing project, our expert to contact you soon, and offer you suitable solution accordingly.
FAQ
1. Who are we?Hebei Tingdajie Trading Co.LTD is a comprehensive solution provider for heavy-dutyvehiclemaintenance.The main service models are trucks,buses,construction vehicles,etc.2. How do we guarantee the quality? It is alwavs a pre-production sample before mass production; a final inspection is always performed before shipment; 3.What can you buy from us?Pneumatic hydraulic jacks,tire changer machines,and other related heavy-dutyvehicle maintenance tools. 4.Why buy from us instead of other suppliers?a:We are a manufacturer with 3 factories and support customization.b:The product aualitv is aood,with CE certificate,Passed the aualitv svstem certification.c.The company has its own new product design and development capabilities.d.Fast production and delivery 5.What services can we provide?Accepted deliverymethods:FOB, CFR, CIF, EXW, DDP,express; Accepted payment currencies:USdollar,Euro,Japanese yen,Canadian dollar, Australian dollar,Hong Kong dollar,British pound,Chinese yuan,Swiss franc;Accepted paymenttypes:T/T L/C.creditcard;
>>
