Product Details
Product Description
Product Description

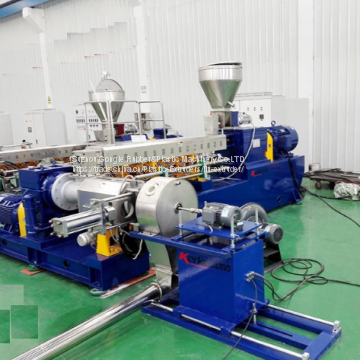

professional PE/PP Color Masterbatch Pelletizing Machine Line has excellent mixing performence, good self-cleaning performance and flexible modular configuration characteristics which make them suitable for processing different types of materials.And this machine has been abroad applied to LSHF cable material, XLPE material, low smoke free halogen cables, shield material,chemical crosslinking cable material, wood plastic, a wide range of uses.
The high speed compound extruder production line is ideal for making EVA granules,master batches & Compounding PP/PE,PVC TPR, low smoke zero halogen (LSZH) cable materials, ABS, LDPE, HLDPE, etc. You can use the master batches & Compounding for making: Shopping & Carrier bags, Woven Sack Multilayer Films, Water Tanks PE & PVC Cables, PVC Shoes, Cing Film, Anti Block P.P etc.
The production line combines materials mixing, conveying, feeding, extrusion granulation, water circulation cooling and air cooling sending as a whole line, automated continuous operation, the high effective production. Frequency converter used to control the rate of granulation to meet the speed of material requirements and savings power function.
Compact structure, occupies little space and can be installed flat.
Production sub-loop temperature control process, dispersion kneader, feeder, extrusion machine has its own heating and cooling system, control their temperature, according to process requirements. Feeding machine is of double screw propeller extrusion feeder, with the feature of strong material feeding, especially suitable for extrusion and granulation of mixed compound directly from kneader.
Barrel screw use 38CrMoAlA quality alloy steel, nit riding treatment, high hardness, wear resistance to corrosion.
Machine head adopt manually net changing organization, easy to operate.
Electronic control system uses advanced PLC control technology, and two inverters form, then mixing, feed, extrusion, palletizing and other multi-process machine according to the requirements of high accuracy, wide variable speed. And the line has the whole chain of machine technology, sound and light alarm functions; improve the reliability and safe operation. Granules palletized from this line are with the features of beautiful appearance, fine texture, well distributed.
For this end product, we have two process: one is kneader dispersion mixer +single screw extruder ,the other is two stages extruder, w e should recommend the suitable one for you according to your endproduct.
the process : kneader dispersion mixer - cone double feeding machine - single screw extruder--- brace head and net exchanger--granule machine
Two stage extruder:
The first compounding extruder runs at a high speed for good mixing and high output capacity.The second extruder must be a larger diameter single screw one that can run at lower screw speed .The lower screw can avoid over –heating by internal cooling system and strong heat exchange ability .The functional separation allows operator to more flexibly control the expectable material mixing process and temperature.
Features of product:
1.advanced equipment, precise pelletizing and high producing capacity.
2. Conical double-screw extruder, very suitable to process POM XLPE PVC powder with high capacity
3. Pelletizing style: Hot-cutting on mould face, even cutting ensures good shape.
4. Auxiliary machine: Pellets cooling & classifying
GL Series Co-rotating Parallel Twin-screw Extruder Features
1. Screw components designed by computer aids is kneading type, has excellent self-cleaning function,
the new kneading block design effectively avoid the problems of overheating and energy consumption.
2. According to process system and formula requirements, the unit can optimize its L/D ratio, barrel structure, screw array,
venting number and location, feeding method, electrical control methods etc. for rational allocation.
3. Granulation system: water-cooling strand pelletizing, air-cooling die face hot cutting, water ring die face hot cutting,
Eccentric water mist hot cutting, water and underwater die face hot cutting and so on.
4. Application: Filling Modification, glass fiber (carbon fiber) enhance various kinds of master batch
Contact person
| Conrad liu 0086-13511639912
|
Address
| Qiandeng Town, near Shanghai Airport
|
>>
