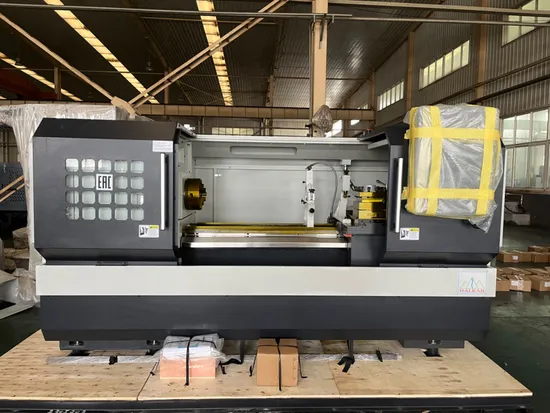

CAK6150-1000/1500

Product Description

	item	specification
1	Max. swing dia. over bed	500mm
2	Max. turning dia. of workpiece	250mm
3	Distance between centers	1000/1500mm
4	Bed form	flat
5	Middle pallet
6	Max.X stroke	300mm(hard guide)
7	Max.Z stroke	535/835mm
8	Rapid feed X/Z	4/6m/min
9	X/Z motor speed	2500
10	Z axis guide width	290
11	Ball screw X/Z	3205/4005
12	Spindle speed	100-1500RPM
13	Spindle nose	A2-8
14	Spindle bore	82mm
15	Power of main motor	7.5KW
16	Spindle clamp	10inch hydraulic chuck
17	Chuck bore	55mm
18	Tool holder	electric
19	Number of tool holders	4/6/8
20	Standard blade size	25×25mm
21	Maximum boring tool diameter	25
22	Tailstock stroke	140
23	Tailstock diameter	60
24	Tailstock Mandrel stroke	140
25	Tailstock taper	MT4
26	positioning accuracy X/Z	0.015/0.02mm
27	repositioning accuracy X/Z	0.008/0.008mm
28	Overall dimensions of machine	2600x1700x1750mm
29	Case dimensions of machine	2630x1800x1900mm
30	Net weight /gross weight of the machine	2600/3000kg

Shandong Linyi Golden Star Machine Tool Co., Ltd.the original linyi machine tool plant, founded in 1965, is a research and development, production and manufacturing mechatronics CNC machine tool products and characteristics of export products for the main business of state-level high-tech enterprises, with annual production of CNC lathe, vertical machining centers, CNC milling machine, engine lathe, multi-purpose machine, surface grinding machine, etc. The comprehensive production capacity of more than Taiwan. The company has passed THE ISO9001 international quality system certification, and enjoys the right to import and export. It is a patent star enterprise in Shandong Province, with provincial enterprise technology center, provincial one enterprise one technology RESEARCH and development center, municipal engineering technology research center and key laboratory of high-grade CNC machine tool enterprises.
The company is the professional and technical personnel education base in Shandong Province, with 32 scientific research personnel, one expert with outstanding contribution and six senior titles enjoying the special allowance of The State Council. At present, the company has 24 national patents and 5 software Copyrights. Presided over the formulation of JBCPZT1319-2019 CNC double-head vehicle industry standard, and participated in the formulation of JB/T8326 CNC Instrument Horizontal Lathe industry standard.

---
