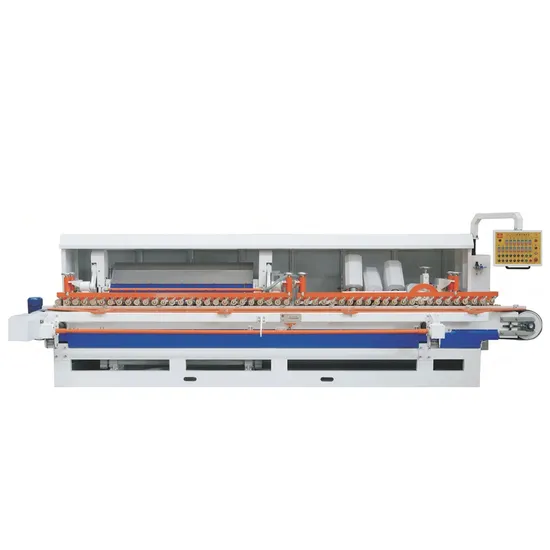

Arc Edge Polishing Machine Granite Marble Ceramic Quartz Grinding and Polishing

Product Description

Product Parameters

Model	ZD-1200
Number of polishing head	14
Dia of polishing head	Φ100mm
Number of notching disc	3-4 slips
Dia of notching disc	Φ150mm
Working width	100-1200mm
Working thickness	6-30mm
Polishing speed	2-6m/min
Total power	41.5kw

Outline dimension	6000*2200*1700mm
Weight	5000kgs

Detailed Photos
Machine body This machine use integrated structure,The bed is firm and stable,No need to disassemble ,easy to install.


1st trimming head Main power 4kw Chamfering wheel Ф200mm 2nd notching head Main power 2.8kw Notching disc Ф150mm*4pcs
Four chamfer grinding head The angel of the chamfering head can be adjust from 45º to 30º, 30º to 45º, 60º to 45º.
7th 45º chamfering head from down side
14 heads polishing wheels
Company Profile
60000 square meters standard workshop. 286 employees. 6000+ stations annual output. 30+ sales country. TOP TEN manufacturer brand in China.
Our company fully introduced advanced laser application technology at home and aboard, collecting various high-end production machine tools and first-class industry talent, committed to creating the best stone processing machines.
After Sales Service
We can provide overseas aftersales service,we have professional aftersales team.
For small problem, we can use email /whatsapp/wechat to talk or video to solve .
We can also send engineer to your factory to help you install the machine and train how to use the machine.
Packaging & Shipping
Use double bubble to pack the machine ,fix the machine very well in container

---
