High Capacity EPE Sheet Extruder

Product Description

HLSJPE(EPE) Series High Foam Extruder
Introduction Discover the pinnacle of extrusion technology with our groundbreaking HLSJPE(EPE) Series High Foam Extruder.This premier Polyethylene Sheet (Pearl Cotton, EPE) Extruder is meticulously crafted to deliver unparalleled efficiency and durability.
Machine Features
- Primarily utilized for heat preservation, noise insulation, and superior buffering, this extruder guarantees exceptional performance across all applications.
- Features stable performance with exceptionally high output, minimal energy consumption, and advanced automation for seamless and efficient operation.
- Combines competitive pricing with user-friendly operation and easy maintenance, making it a valuable addition to your production line.
Main Technical Specifications

Model Parameters	Unit	HLSJPE-90/50	HLSJPE-105/50	HLSJPE-120/53	HLSJPE-150/55	HLSJPE-180/58
Capacity	kg/h	60-100	80-130	100-160	230-330	350-500
Screw diameter	mm	90	105	120	150	180
Length diameter ratio	L/D	50	50	53	55	58
Foaming ratio	Times	30-50	30-50	30-50	30-50	30-50
Density	kg/M3	18-30	18-30	18-30	18-30	18-30
Drawing speed	m/min	20-80	20-80	20-80	30-100	30-120
Sheet width	mm	1600	1600	1600	2000	2000
Sheet thickness	mm	0.5-5	0.5-6	0.5-8	1.5-12	3--20
Center height	mm	1100	1100	1100	1100	1100
Installed power	Kw	90	110	150	200	350
Pressure of cooling water	Mpa	≥0.2	≥0.2	≥0.2	≥0.2	≥0.2
Cooling water	T/H	8	10	12	18	20
Installation size (LxWxH)	M	21x5x3	22x5x3	23x5x3	26x5x3	30x5x3
Weight	T	11	12	15	18	25

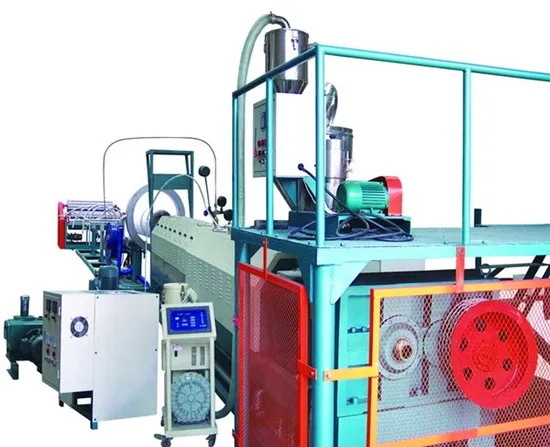

Machine Photos

---
