Qt4-26 Semi Automatic Interlocking Concrete Block Making Machine Machine for Concrete Block

Product Description

Product Description

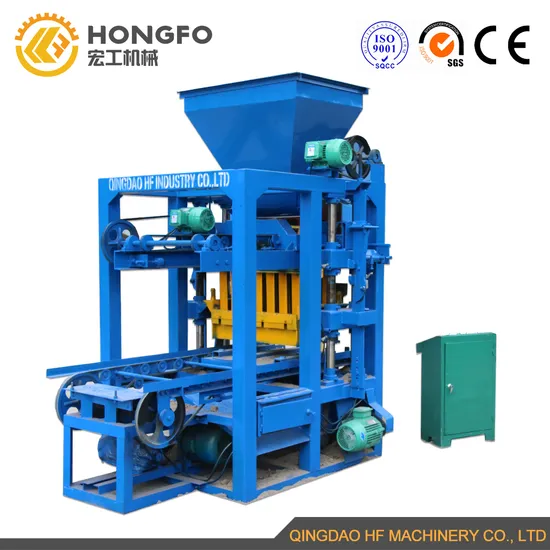

QT4-26 semi automatic vibration brick block making machine
Siemens Motor / Omron Switch / International Standard Steel / Manganese steel mold
1. Electric QTJ4-26 is a kind of semi-automatic type based on the orignal medium and small-scale block machines by us.
2. The movement of the upper mould and the baiting valve are controlled by electric motor greatly save the work labor and imporve the production efficiency.
3. This machine use electric-driven and mechanical control together to finish machine different movement, and make sure the machine work right and reduce the operation fault,it is easy to operate.
4. It use upside and bottom vibration together,quick molding,high density and intensity.
5. Electric QTJ4-26 can also work with two machines together,greatly improve the productivity.
QT4-26 Block making machine specification

Main Technical Specifications
Overall Dimension	2060x1730x2580mm
Exciting power	35KN
Molding pieces	400*200*200 4pcs/mold(hollow brick) 480-550pieces per hour 400*240*200 3pcs/mold(porous brick) 360-415pieces per hour 240*115*53 12pcs/mold (solid brick ) 3120-3600pieces per hour
Productivity	2000-2500pcs/day
Cycle Time	26-30 seconds
Vibrating Frequency	4200 rolls/minute
Weight	2000kg
Motors Power	14.25KW
Pallet Size	910x480mm
