Automati High Speed Full Servo Toilet Tissue Paper Rolls Wrapping Sanitary Packing Machine

Product Description

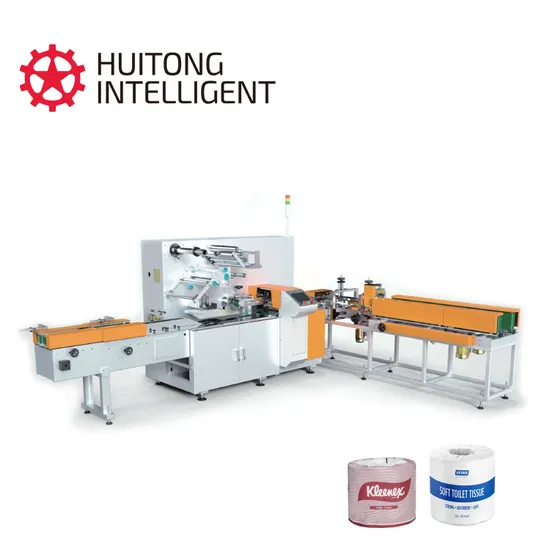

High Speed Full Servo Toilet Paper Packaging Machine
Product Description
ENHANCED PRODUCT DESCRIPTION:
Roll paper single pack Production Line with Advanced Plastic Type Transfer System for Maximum Efficiency Ready to embark on a lucrative venture in facial tissue or cotton towel production? Discover the essential machinery you need to succeed!
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements. The production process is: Unreeling - Embossing - Perforating- Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core loading.
Explore a variety of machine types, whether full auto or semi auto. We warmly invite you to consult with us and explore innovative production solutions tailored to your market's popular products.
Sophisticated Functions The maximum operational speed of the Roll paper single pack Production Machine, achieving an impressive rate of 100-130 m/min ♦ Intuitive operation and minimal maintenance, maximizing space efficiency with only one operator needed to transfer tissue logs post-operation ♦ Leverage our automatic cutting machine to dramatically boost production efficiency and ensure pristine tissues, free from human contamination ♦ Automatic shutdown feature when paper breaks, conserving resources by preventing undue waste Remarkable Features: ♦The fully automatic single roll paper packaging machine is suitablefor automatically packaging tollet paper or kitchen paper with orwithout cores.
♦The paper discharge, feeding, film feeding, scanning, flm cutting.and paper direction change are controlled by servo.
♦lt has thefollowing advantages: simple operation, sturdy and durable, easy tooperate, wide size range, fast size replacement, easy maintenance.and low usage cost.
♦Equipped with standard functions: jog function, linear function, PLCtemperature control function, diameter detection alarm function,length detection alarm function,detection and alarm function,automatic sealing opening/closing function, stop film entry whenthere is no material function. Vivid Sample Picture:
Comprehensive Machine Information:
Key Technical Parameters:
1. Cutting-edge Tissues Fold Machine

Machine model	HT-JZDB01
Jumbo roll max width	1750mm (Other size can be specified)
Jumbo roll diameter	1200mm
Jumbo roll inner core diameter	3inches(76.2mm)
Finish product diameter	90-280mm
Finish product Inner core diameter	38-76mm
Perforation distance	120-150mm
Production speed	180-230m/min
PLC	INVT
Pneumatic system	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Unwinding transmission	Variable stepless speed regulation
Rewinding Unit	With core or coreless

Captivating Machine Picture:
Insightful Factory Information:
