Dustfree HEPA High Temperature Grade 100 Clean Oven Drying Medical Tools 270 Liter

Product Description

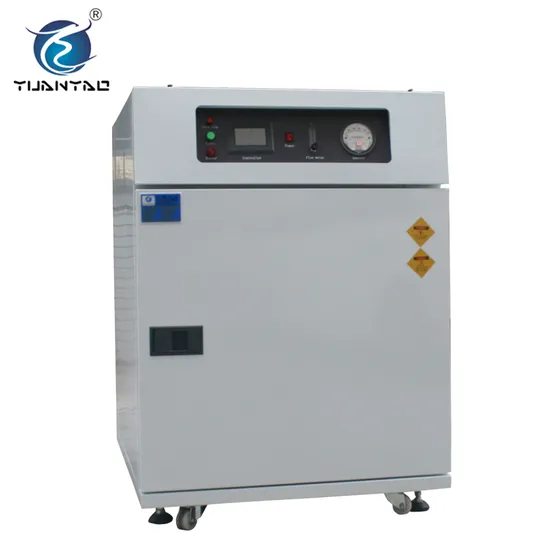

Dustfree High Temperature Oven
Application:
Dust-free oven is a special cleaning equipment for high temperature purification environment .It is used for electronic liquid crystal display,LCD,CMOS,IS,medicine,laboratory research departement ,Can also be used for drying non-volatile and non-flammable and explosive materias ,heat treatment ,aging ect.
The air in the dustfree oven is closed and self-circulating, and filtered repeatedly by high temperature resistant and high efficiency air filter (grade 100), so that the oven working room is dust-free. The dust-free oven is made of SUS 304# stainless steel construction.
Dust-free oven can be divided into grade 100 dust-free oven, grade 1000 dust-free oven, grade 10000 dust-free oven, touch screen controlled dust-free oven, LED dust-free oven,PCB board dust-free oven, for ITO glass dust-free oven, etc.
Feature:
1 Digital dispaly type controller or touch screen controller
2 hot air circulation heating type ensure rapid temperature rise and a uniform distribution
3High efficiency filter
Technical parameters: See the label.

Model			YCO-072	YCO-270	YCO-480	YCO-600	YCO-800	YCO-1000
Inner chamber size WxHxD(cm)			40*45*40	60*90*50	80*100*60	100*100*60	100*100*80	100*100*100
External chamber size WxHxD ( cm)			55*110*79	75*162*89	94*172*99	115*172*99	115*172*119	115*172*143
Temperature range			±25ºC~200ºC(300ºC)Romm temperature±25ºC~200ºC(300ºC)
Temperature fluctuation			±0.3ºC
Temperature uniformity			±1%ºC
Temperature reaolution			0.1ºC
Dustoproof class			Class100,Class1000,Class10000
Heat-up-time			30 minutes
Inner chamber material			Stainless steel
Exterior chamber material			Cold rolled sheet+Powder coating
Filter			HEPA Filter/PEPA Filter/MEPA Filter
Insulation			Rockwool
Wind circulation system			Centrifugal fan air circulation system
Heating system			Ceramic/SUS#stainless steel hight speed heater
Controller			Button type digital display controller
Other components			Control status indicator,loading shelf(2pcs,heightis adjustable)
Safe device			Phase protection, overperature,overcurrent,over load protection
Power supply			AC 3 phase 308V 60/50Hz
Customization service			Non -standard requierments is available

Except Dustfree High Temperature Oven Guangdong Yuanyao test Equipment Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Company profile
FQA
1.Do you offer after-sales service?
Every machine from our factory has a 12-month warranty after shipment. If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if necessary.
2.Do you accept customization service?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements.
3.Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4.Why choose Gangdong yuanyao ?
We are the factory with own team .we can provide you the reliable quality products while with reasonable price.
5.How about your packing and shipment
products wold be coverd with pe film then put them into the standard wooden case,By Sea or Air are available
Welcome to enquire and purchase!

---
