Basic Info.
Certification
ISO9001, GB
Operation Form
Swapping Battery Automatically
Maximum Lifting Height
<10m
Maximum Lifting Weight
<20t
Swapping Capacity
168 Times Per 24h
Charging Power
320kw Per Unit
Charging Power Customized
Can Be Customized
Charger out Side
Optional
Pure Station Weight
Around 28t
Other Solution
Can Be Customized
Power Supply
2500kVA Normally, Dependes on Charging Power
Pure Swapping Time
at Most 4 Minutes
Transport Package
Preinstallation Style Split up Pacakges
Specification
17m(L)*5.8m(W)*5.24m(H)
Production Capacity
300 Units / Year
Product Description

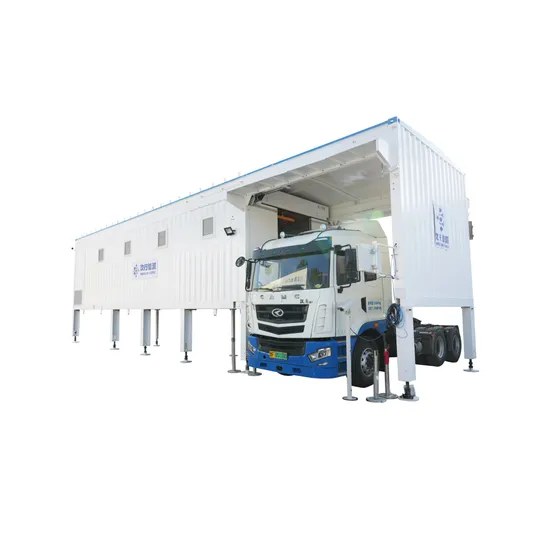

2024 New Type Swapping Station Promax for E-truck.
It can be used in 6 main use case as Thermal Power Plant ,Mining Place, Port, Transportation Line, Steel Mill, Urban Constraction,etc.
Normall can serve more than 60 units of E-truck depending on the working condition.
Easy to install.
Can be customized. The swapping station can be customized from 5+1 to 9+1 for different working condition.
And can be customized special type to match the customer requirements.
If you are interested in this product, you can contact us at any time.
We can customized for your special requirements.
| Items | Descriptions | Remarks |
| Battery box system | 282kwh / 350/kwh / 400kwh | Compartibility with almost all brand OEM truck made in China |
| Charger | 320KW | can be customized to 360KW dependes on the battery capacity |
| Charger number | 8 units | |
| Dimension | 17M*5.8M*5.28M | Other scale can be customized |
| Power supply | 2500KVA | can be customized depende on the charger power |
| Swapping capacity | 168 times per 24h | |
| Station weight | 28T | Full load station need add the weight of 7 battery box, each battery box around 3T |
| Temperature | -20ºC ~ 55 ºC | |
| Seaworthy packing | Yes | Photos for references |
| Remote technical guidance | Yes | until 365 days after commissioning on-site. |
| On-site service | Intall guidance
Commissioning
Training | Paid service according to the actual condition |
| Spare parts | Will be recommended | Need to buy according to the final design for maintenance and repair |
>>
