Full Automatic Feeding Nail Shoe Heel Nailing Machine for Shoe

Product Description

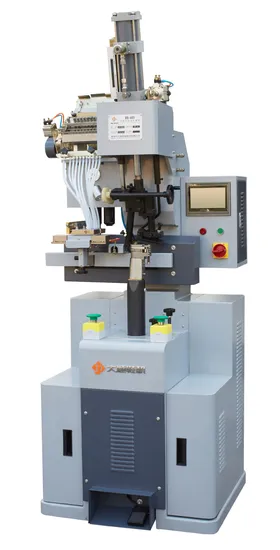

DS-403 Fully Automatic Pneumatic Heel Nailing Machine for shoe
This machine is applicable for the heel nailing of all kinds of man and lady shoes.
The pneumatic-hydraulic cylinder ensures steady pressure and secure pressing
There are manual, semi-automatic and fully automatic heel nailing modes available for option.
The nailing sequence and pore positions can be set.Various kinds of nail anvils can be selected.
It has simple design with easy adjustment and replacement. It is equipped with several
heel-pressing fixtures to mount different kinds of heels of any heights. There are fixed or swing
heel-pressing fixtures available for attaching heels to shoes and high boots.
The nail box has 11 paths available for the nails or screws of the length between 10-25mm. It is
able to automatically complete nail categorizing, positioning, and feeding accurately.
The safety protection device designed on the nail feeding plate ensures safety and reliability.
There are nail anvils of different specifications for easy change. The unique diagonal nailing design is able to avoid penetrating but secure the heel with nails.
1,Functions Outline
Featured with automatic nail sorting, nail feeding, nail sorting and so on, DS-403 Automatic Pneumatic Heel Nailing Machine is an advanced equipment used in shoe industry for heel-nailing purpose exclusively. The quality is ensured in that it can nail separately and the nailing depth is adjustable. This machine is your best choice and a must equipment to upgrade your product quality and enterprise level.

2,Technical Data and Parameters

Power Voltage	V	220
Air Output	m³/min	0.3
Productivity	Average Shoes (sec/pair)	3
	High Upper Boots (sec/pair)	4
External Dimension	Length × width ×height (mm)	910×800×2200
Machine Weight	Kg	450

---
