Permanent Magnet 7.5kw Stable Quality VSD Screw Type Air Compressor with Latest PLC

Product Description

Permanent Magnet 7.5KW Stable Quality VSD Screw Type Air Compressor with Latest PLC
Specification:

Parameter/Model

Displacement/Pressure

Cooling Method

Lubrication volume(L)

Noise db

Driving mode

Voltage

Power

Start up mode

Dimention

Weight

Output pipe diameter

m3/min

KW/HP

L*W*H

KG

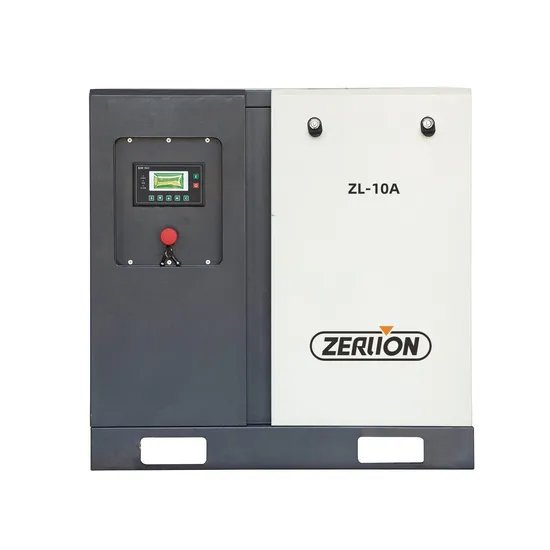

ZL-10A

0.9/0.7

0.8/0.8

0.69/1.0

0.6/1.2

air cooling

10

66±2

direct driving

220V/380V/415V;50Hz/60Hz

7.5/10

y-start-up; varialbe Frequency starting

850*700*920

210

G 1/2″

ZL-20A

2.5/0.7

2.3/0.8

2.1/1.0

1.9/1.2

air cooling

18

68±2

direct driving

220V/380V/415V;50Hz/60Hz

15/20

y-start-up; varialbe Frequency starting

950*750*1250

300

G 3/4

ZL-30A

3.8/0.7

3.6/0.8

3.2/1.0

2.7/1.2

air cooling

18

68±2

direct driving

220V/380V/415V;50Hz/60Hz

22/30

y-start-up; varialbe Frequency starting

1380*850*1160

450

G 1″

ZL-50A

6.8/0.7

6.2/0.8

5.6/1.0

5.0/1.2

air cooling

30

68±2

direct driving

220V/380V/415V;50Hz/60Hz

37/50

y-start-up; varialbe Frequency starting

1550*1000*1330

650

G 1-1/2

ZL-10A-PM

0.9/0.7

0.8/0.8

0.69/1.0

0.6/1.2

air cooling

10

66±2

direct driving

220V/380V/415V;50Hz/60Hz

7.5/10

y-start-up; varialbe Frequency starting

850*700*820

210

G 1/2″

ZL-20A-PM

2.5/0.7

2.3/0.8

2.1/1.0

1.9/1.2

air cooling

18

68±2

direct driving

220V/380V/415V;50Hz/60Hz

15/20

y-start-up; varialbe Frequency starting

950*750*1250

300

G 3/4″

ZL-30A-PM

3.8/0.7

3.6/0.8

3.2/1.0

2.7/1.2

air cooling

18

68±2

direct driving

220V/380V/415V;50Hz/60Hz

22/30

y-start-up; varialbe Frequency starting

1380*850*1160

450

G 1″

ZL-50A-PM

6.8/0.7

6.2/0.8

5.6/1.0

5.0/1.2

air cooling

30

68±2

direct driving

220V/380V/415V;50Hz/60Hz

37/50

y-start-up; varialbe Frequency starting

1550*1000*1330

650

G 1-1/2″

Intelelligent Permanent Magnet Frequency Screw Air Compressor
The motor is made of the special material of rare-earth permanent magnet,strong magnetic field,large overload torque and small curent while starting and operation ; Soft starter by the inverter,avoiding the strong mechanical shock while starting,prolonging the life of machine,reducing the maintenance,improving the reliability.
High efficiency permanent motor,energy saving about 5-8 compared to the ordinary three-phase asynchronous motor.
Split,maintenance and disassembly moer convenience(split machine).
Coaxial structure,without any transmission loss(one-piece machine).
IPM frequency conversation technology,permanent mannet frequency conversion air compressor relative to ordinary frequency air compressor average energy saving more than 30%.
For More Products
Our Exhibition

Why Choose Us?
Brief introduction:
Tai zhou Mechanical &Electrical Co.Ltd. Is one of the main manufactures,specializing in the Research and Development,Manufacturing and sales of the Piston air compressor. Our company located in the Hengjie town,LuQiao District, TaiZhou City, far from TaiZhou Airport is only 3KM,and Ningbo port is around 220KM,the traffic is very convenient for your.visiting.
Our company owns an area of 50000 suqare mater and has more than 300 staffs.
We have advanced production equipment and well familiar with the process of the mass production,have high precision measuring instruments and high efficiency of automatic assembly line ensure the quality and quantity of the [roduct. We have strong technical strength and production management ,gathering the technical team and manamement team from the leading enterprise of air compressor in domestic .we set up our town lad and development tesm,with a strong ability to develop thre product ,meeting the diffient demand from the different customer and different ,maket.
We take the maket demand as the guidance ,strives for the survival by quality ,strives for the development by innovation,always put customers,quality and innovation in the first place ,follow up the prefessional management and continuously satisfy the demanded of the customer,We always follow up the principle of people-oriented,legitimate business,honest & trustworthy,focus on the industy of the air compressor,with the effort to create a first-class brand in the industry of air compressor ,with the effort to create a first-class brand in the industry of air compressor.

Frequency Asked Question:
Q1: Are you factory or trade company?
A1: We are factory.Thank you.
Q2: What the exactly address of your factory?
A2: Our company located in the Hengjie town,LuQiao District, TaiZhou, Zhejiang Province, China . Thank you.
Q3: Warranty terms of your air compressor machine?
A3: Two years warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the air compressor?
A4: Yes, of course.
Q5: How long will you take to arrange production?
A5: About 25 working days after receiving the deposit on our bank account
.Q6: Can you accept OEM orders?
A6: Yes, with professional design team, OEM orders are highly welcome
Q7:What trad terms do we provide ?
A7:Trade terms FOB,CIF.
Q8:What is our payment term? What kind of settlement currency do we offer ?
A8:Normally, we can do T/T and LC at sight, for the T/T, 30% will be required as deposit, the balance amount against the copy of the BL.
We can accept the currency in USD or RMB.
Q9:What about the cost of sample?
A9: The cost of the sample will be required, but we can return back the amount in the future order by 1*40'HQ.

---
