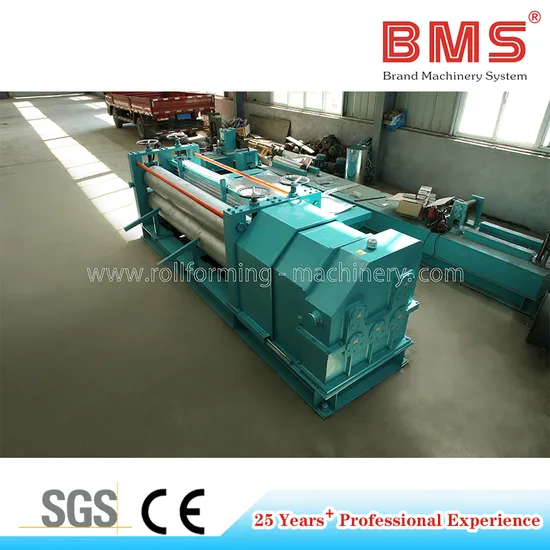

Thin Panel Barrel Corrugated Roof Panel Roll Forming Machine

Product Description

Thin Panel Barrel Corrugated Roof Panel Roll Forming Machine
Product Description
Material
Effective width: 660/880 mm
Material Thickness:0.12-0.25mm
Applicable material: Prepainted galvanized steel(PPGI)
with yield strength Q235-Q350Mpa
Main Machine
EQUIPMENT WEIGHT:6.7 TON
OUTLINE DIMENSIONS:5000X2000X1500MM
BEFORE/AFTER:750mm/660mm,1000mm/880mm
WIDTH OF THE SHEET: 660 MM TO 1000 MM
LENGTH OF THE SHEET:2600-3100MM
MATERIAL TO BE CORRUGATED: FULL HARD GALVANIZED SHEETS
THICKNESS RANGE OF SHEET: 0.12MM TO 0.25 MM
DEPTH OF WAVE:19MM
PITCH OF WAVE:76MM
DRIVE:7.5 KW
SPEED:10-12 STROKES PER MINUTE
OUTPUT:2-4 TONS PER HOUR
PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand)/Schneider(French brand)
Inverter	Siemens (German brand)/Schneider(French brand)
7-Inch Color Touch Screen	Siemens (German brand)/Schneider(French brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens(German brand)/Schneider(French brand)
Air Switch	LG-LS(Korea brand) Cut-to-Length Tolerance≤±1 mm Control Voltage 24V

After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within The 24months, we will courier the replacement parts to the client free of charge
2.We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with extra cost
Terms Of Trade

Minimum order quantity (MOQ)	1 Set
Delivery time	about 45 workdays
Port of loading	port of Xiamen
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea, Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia, Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion), loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
