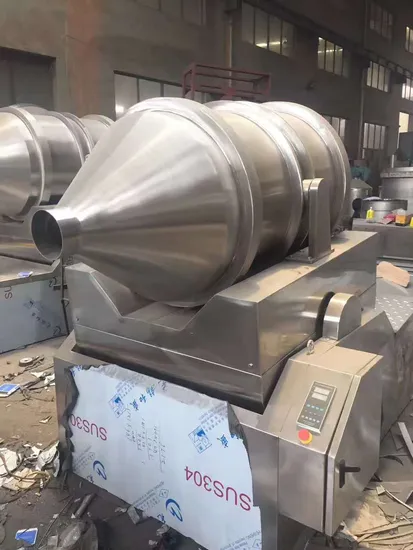

EYH Two Dimensional Mixer

Product Description

EYH Two Dimensional MixerWorking Principle
EYH Series Two Dimensions Mixer mainly consists of three big parts. rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four wheels and positioned by two catch wheel in axial ­direction. Among the four supporting wheels, two of four wheels are driven by rotating system to make the cylinder rotate. The swinging rack is driven by a set of crankshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.
Characteristics
The rotating cylinder of EYH Two Dimensions Mixer can make two motions at the same time. One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack. Materials to be mixed will be rotated when the cylinder is rotating, and will be mixed from left to right and vice versa when the cylinder is swinging .As the result of these two motions, materials can be mixed fully in a short time. EYH Two Dimensions Mixer is suitable for mixing of all powder and granule materials.
Technical Parameter

Model	gross volume (L)	feed rate	feed weight (kg)	power(kw)
				rotation	sway
EYH100	100	0.5	40	1.1	0.75
EYH300	300	0.5	75	1.1	0.75
EYH600	600	0.5	150	1.5	1.1
EYH800	800	0.5	200	1.5	1.1
EYH1000	1000	0.5	350	2.2	1.5
EYH1500	1500	0.5	550	3	1.5
EYH2000	2000	0.5	750	3	2.2
EYH2500	2500	0.5	950	4	2.2
EYH3000	3000	0.5	1100	5	4
EYH5000	5000	0.5	1800	7.5	5.5
EYH10000	10000	0.5	3000	15	11
EYH12000	12000	0.5	4000	15	11
EYH15000	15000	0.5	5000	18.5	15

---
