Hammer Crushing Machine for Coarse Powder

Product Description

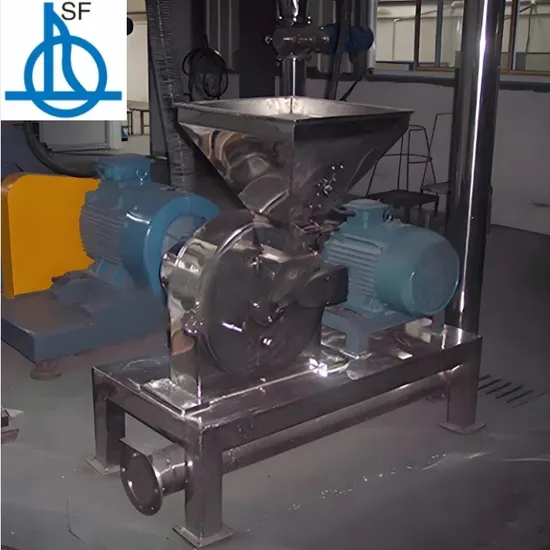

hammer crushing machine for coarse powder JF model
Working Princible
The material is forcibly fed into the crushing chamber through a spiral feeder, and is subjected to the impact of a high-speed rotating pendulum, as well as the shear effect between the hammer and the upper toothed plate. Under the action of vortex flow in the tooth groove, the material is subjected to mutual friction, collision and other forces to achieve crushing. The product is discharged from the lower part of the machine, and there is a sieve at the lower part of the machine to adjust and control the particle size of the product.
Performance & Characteristics
1. This machine is suitable for crushing solid materials such as soft minerals, brittle materials, fibrous materials, and for breaking down agglomerated materials.
The jacket of the Type I machine casing can be water-cooled, which can appropriately reduce the temperature inside the machine.
3. Multiple aperture sieves can control and adjust the particle size of the product, and the particle size can also be adjusted by changing the rotation speed.
4. It can be specially designed into various combination devices to meet the needs of various materials and users.
Scope of Application
Pesticides, fertilizers, dyes, pigments, coatings, medicines, plastics, inks, fragrances. Feed, binders, cosmetics, fibrous materials, sanitary materials, leather, dental materials. Oils and fats, papermaking, refractory materials, insect repellents, sericulture, building materials, electronic components, metallurgical mineral products. Catalysts, batteries, electrical appliances, insulation materials. Agricultural and forestry livestock products, seafood, food, seasonings, and grains. Tea, candy, adjuvants, additives, etc.

Product Parameters

Parameter/Model	JF-300-1	JF-300-2	JF-610-4	JF-610-5
The diameter of crushing chamber mm	300	300	610	610
Motor KW Power	15	18.5	37(45)	110
Spindle speed r/min	6500	6500	3450	3450
Thenumber of hammer pcs	24	24	96	144
Amountof wind m3/h	1174	1610	2887	3849
Production capacity Kg/h	20-200	100-600	100-1000	150-1500
Granularity size μm	≥45	≥45	≥45	≥45
Weight Kg	750	950	2300	2510
Dimensions L*W*H mm	1480x1280x1490	1475x1465x1485	1850*1730*1626	2440*1453*1850

Flow Chart
