CNC Metal Mould Making CNC Engraving Milling Machine for Aluminum Stainless Carbon Steel

Product Description

Product display

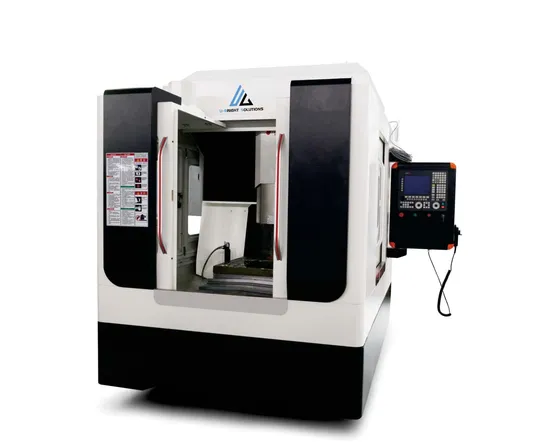

The GS-655 adopts gantry structure and is cast by high-quality Mihanna cast iron. The internal dragon skeleton is strengthened. All cast iron has been annealed, with high stability and long-term use without deformation. Due to his heavy structure, rigid spindle and high main motor power, this machine can be used for engraving, but also milling. Sealed outer cover, double - sided doors open to facilitate product processing. Adopt special high-speed carving and milling machine control system, precision ball screw and linear guide rail, the coupling has precision measurement, to ensure the stability in the process of processing, return action zero clearance, improve production efficiency. Dx-650 is favored by more and more customers for its high cost-performance, fast processing speed and good finish.
Applications: Automobile industry, household electrical industry, injection mold, hardware mold, hand tools etc.
Machine Feature: High speed for finish & low speed for milling This machine can be applied for good finish of the molds or die, but also can be used for heavy cutting with low speed. Special high-speed controller The new generation of special high-speed engraving and milling machine control system is developed by using Japanese and Taiwan technology. High quality components Main components are imported from Japan and Taiwan, such as servo motor, rail, shaft connector, screw assembly. Wide machining range Precision machining for different materials: steel, copper, aluminum, graphite, plexiglass, etc. Self-cooling system on spindle The spindle in high-speed work can be self-cooling, to ensure that the heat will not damage the spindle characteristics. Equipped with tool setting gauge New designed cover Sealed cover, double-sided door opens and seals the product for convenient processing.

Product Paramenters

Item	GS655	GS760	GS7080
Worktable size	600x550mm	700x600mm	700x900mm
X/Y/Z axis travel	600x550x320mm	600x700x320mm	700x900x320mm
Distance from spindle end to worktable	130-450mm	130-450mm	120-420mm
Max load	400kg	500kg	600kg
Spindle type	BT30/ER32	BT30/ER32	ER32/BT30
Spindle power	5.5kw	5.5kw	5.5kw
Transducer power	7.5kw	7.5kw	7.5kw
Spindle cooling	Special spindle cooling system	Special spindle cooling system	Special spindle cooling system
Max speed	24000 rpm	24000 rpm	24000/30000 rpm
Servo system	Taiwan SYNTECH(Three axes 1000W )	Taiwan SYNTECH(Three axes 1000W )	Taiwan SYNTECH(Three axes 1700W )
Rapid speed	24m/min	24m/min	24m/min
Max machining speed	10000mm/min	10000mm/min	10mm/min
Controller resolution	0.001 mm	0.001 mm	0.001 mm
Lead screw/Guide rail	High precision lead screw guide rail	High precision lead screw guide rail	High precision lead screw guide rail
Bearing	High precision special lead screw bearing	High precision special lead screw bearing	High precision special lead screw bearing
Repeated positioning accuracy	0.003mm	0.003mm	0.003mm
Positioning accuracy	0.005mm	0.005mm	0.0075mm
Lubrication system	Auto lubrication(20# mechanical oil)	Auto lubrication(20# mechanical oil)	Auto lubrication(20# mechanical oil)
Machine weight	3000kgs	3500kgs	4000kgs
Machine size	2100x1760x2400mm	2100x1760x2400mm	2570x1950x2750mm
Machine power	8KW	8KW	10KW

FAQ
Q.What are your normal lead times?
A.Our company lead times range from 30-45 days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, Cash, Gredit Card etc.
Q.What kind of package do you offer?
A.Whole machine and every parts wrapped by plastic film for dusting-proof.
Packed in export standard wooden case with pallet, conducive to forklift handling.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification?
A.Yes, we have CE certification, machine quality is one year guaranteed.
After sales services:
We have Local After-sales Service in India and Vietnam.
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.

---
