Wholesale Compact Integrated Pressure Vacuum Tube Solar Water Heaters System Solar Energy Water Heaters for Home Hotel

Product Description

Wholesale Compact Integrated Pressure Vacuum Tube Solar Water Heaters System Solar Energy Water Heaters for home hotel
Product Description Sola Solar Pump free solar water heater is Open water tank for heat storage, closed coil for heat exchange and water intake. Sola Solar 20 second rapid heat exchange technology is adopted. The hot water is ready to use, and the water quality is fresh. The hot water pressure comes from the municipal cold water pressure, which matches with the cold water. It is simple to adjust the water temperature. The pressure is surging, the water volume is sufficient, and the use experience is good.

product name	325L Pressurized Vacuum tube solar water heater
model	PFSLY-325/28-5818-P
Types of solar water heaters	PressurIzed
collector tube	All glass vacuum solar collector tubes
Absorbing coating	interference coating
Collector tube size	Φ58mm outer diamater*1800m length
Tank type	Open type
Inner tank material	0.4mm SUS304 stainless steel
Inner tank diameter	Φ380mm
Outer tank material	0.4mm color galvanized steel plate
Outer tank size	Φ480mm
Insulation material	50mm flame retardant polyurethane foam
Heat exchanger Material	316L stainless steel, 0.3mm thickness
Cold/hot water port	DN20/DN25
Product Weight	120kg
Requirements for roof loads	100-120kg/m²
Number of collector tubes	28 sticks
Aperture area	4.2 m²
water tank capacity	255L
total water capacity	325L
full water weight	445kg
Product Size	Length B (mm) 2600
	Width A (mm) 2240
collector inclination	5°~30°
Min. outdoor temperature	-40ºC
Electric heating (option)	1pc, 220V50Hz/110v60hz, 1500W

Company Profile The company has own design and development team and covers 2600 square meters factory. We have 1 national invention patent, 15 national utility model patent certificates, ISO9001, IS014001, ISO18001 certification, and 3C system certification. We have co-edited industry regulations for pump free solar energy and prefabricated hot water units with China Architectural Design and Research Institute. We also have a third-level qualification certificate of professional contracting of construction mechanical and electrical installation engineering, and obtained the safety production license.
The main products are: pump free solar water system, household solar water heater, integrated pipeline, hot water unit and other related products.
Main project achievements: Abidjan Elite School in Ivory Coast, Congo Province Comprehensive Hospital Project, Sri Lanka Hospital, Niger Benin Project, Cambodia Projects; Central Academy of Drama, Beijing University of Posts and Telecommunications, Daxing International Airport China Southern Airlines etc.
Application show Project case presentation:

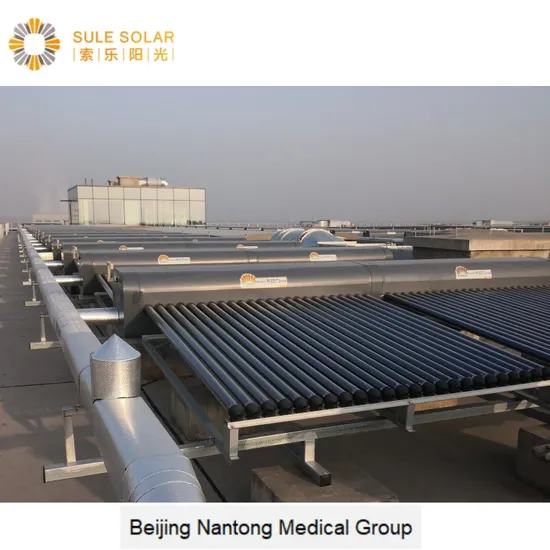

1. Beijing Nantong Medical

In 2018, Beijing Haidian, for 3000 people.
Pump free solar collector:96 Sets (403.2 m² in total)	Storage capacity:60 hot water 30000 liters in total.
Auxiliary heat source: 4 sets gas boiler	Energy saving:331772 kWh per day.

2. Beijing University of Posts and Telecommunications

In 2015, Beijing Changping project for 800 students
Pump free solar collector:1057 Sets (44394 m² in total)	Storage capacity:60ºC hot water 32000 liters in total,
Auxiliary heat source: 8 sets gas boiler	Energy saving: 476575 kWh per day.

3. Beijing Daxing Airport South Airlines dormitory

In 2019, Beijing Daxing, for 1200 people.
Pump free solar collector:600 Sets (2520 m² in total)	Storage capacity:60ºC hot water 45000 liters in total.
Auxiliary heat source: 32 sets gas boiler	Energy saving:270520 kWh per day.

4. Ivorian Elite school

In 2019, Cote d'Ivoire Country, for 1000 students
Pump free solar collector:101 Sets (404 m² in total)	Storage capacity:60ºC hot water 24240 liters in total.
Auxiliary heat source: 15 sets Positive displacement electric heater	Energy saving: 45086 kWh per day.

5. Nanjing Yuanbo Garden Marriott Hotel

In 2021, Nanjing city, for 8000 people.
Pump free solar collector:115 Sets (460 m² in total)	Storage capacity:60ºC hot water 27600 liters in total.
Auxiliary heat source: government heat exchange station.	Energy saving: 51802 kWh per day.

6. Yandong Microelectronics Technology CO., Ltd

In 2021, Beiing city, for 8000 people.
Pump free solar collector:115 Sets (460 m² in total)	Storage capacity:60ºC hot water 27600 liters in total.
Auxiliary heat source: government heat exchange station.	Energy saving: 51802 kWh per day.

7. Beijing Central Academy of Drama

In 2014, Beijing Changping project for 1200 people
Pump free solar collector:150 Sets (630 m² in total)	Storage capacity:60ºC hot water 45000 liters in total
Auxiliary heat source: 6 sets electric water heater	Energy saving: 45087 kWh per day.

FAQ 1. What can you buy from us?
Solar Water Heater, Solar water system. Solar collector.
2. What is your Delivery Time?
LCL order/Sample order: 3-7 days.
Full container order:10-15 days.
3. What is your warranty?
3 years after delivery;
4. Can you accept OEM?
YES. will do OEM Based on your requirements.
5. What is your MOQ?
1 set.
6. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
7. What services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C;
Language Spoken: English, Chinese.

---
