Pipe Tube Solid Bar Beveling Machine / CNC Hydraulic Pipe Chamfering Machine Equipment

Product Description

RT-50SA Semi-automatic Pneumatic Single-head Chamfering Machine Specification:
Type: single head/single end/single side.
Function: chamfering/deburring/edging etc.
Processing place: outside/inside/end face etc.
Processing metal: steel/stainless steel/aluminum/copper/brass/other ferrous metal/non-ferrous metal.
Material shape: round bar/round rod/round tube/round pipe/round tubing etc.
Operation: manual/hand-operated

Features:
1. Manual feeding, Automatic clamping
2. Hydraulic clamping and chamfering
3. Different models for different materials
4. Simply change cutter and gripperdie
5. Smooth and uniform bevel edge
6. Unique design makes the surface smooth
7. Speed change to improve blade life

Model	RT-50AC
Main Motor Power	0.75KW
Working Pressure	MPA6-8KG
Applicable Outer Diameter	Φ4-Φ50mm
Processing Length	30mm
Processing Precision	±0.1mm
Processing Speed	3-5 sec/piece
Applicable Material	Steel pipe, iron pipe, stainless steel pipe, aluminum pipe, copper pipe, plastic pipe, nylon pipe and round rod
Machine net weight	120KG

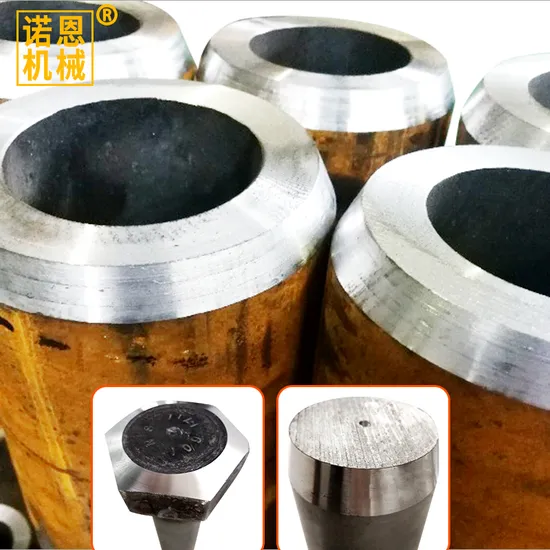

Chamfer tubes
Company Details
Professional: 10 years into machinery.
Brand: RUNTAI, China Famous Brand
Engineers: 9 professional and experienced engineers
Certificates: CE, ISO9001:2008
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc

Trade information:
FOB Shanghai, CIF your port
Payment Terms: T/T, L/C
Delivery Terms: 30% deposit, 70% paid before shipment.
Delivery Time: 30days after receiving deposit
Minimum Order Quantity: 1 set
Warranty: 1 year
Package Details: wooden box
Supply Ability: 30 Sets per Month
Free Sample: No

Contact:
Contact person: Jackie He
Mob: +86 15950109098

Notes:
If you have any doubts about this machine, please contact me through below e-mail addresss.

---
