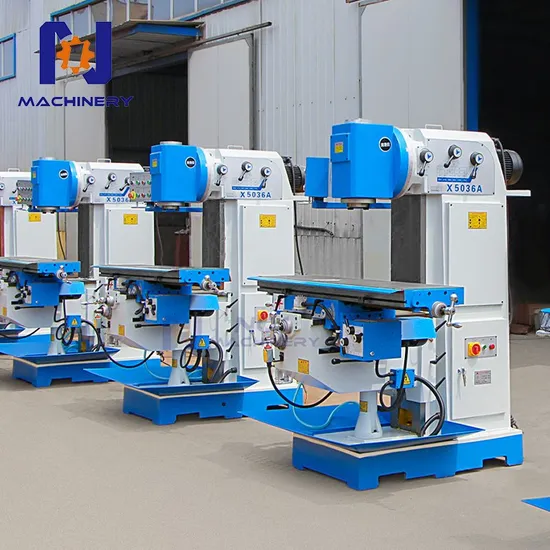

X5036 Taiwan Vertical Milling 3 Axis Milling Machine Vertical Milling Machine General Vertical Machine

Product Description

Product Description

X5036 Vertical Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular cutters, formed cutters and face metal milling cutters. When mounted with the index, the machine will be able to perform milling operations in gears, Cutter, helix groove, cam and tub wheel.Vertical milling head can be swiveled by ±45°, Spindle quill can be moved in vertical.The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. It has the large working table, a set of cantilever for electric button and a longitudinal handwheel in front of the table, So the machine can be easy to operate. Working table and slide ways adopted quality cast hardened ensure high accuracy.

Specification

item	value
Table Travel (X) (mm)	1000
Number of Axes	3
Machining Capacity	Medium Duty
Table Travel (Y) (mm)	360
Table Travel (Z) (mm)	400
Range of Spindle Speed(r.p.m)	60r.p.m - 1700r.p.m
Condition	New
Place of Origin	Shandong
Brand Name	no.1
Model Number	X5036
Table Travel (mm)	1000*360*400
Year	2024
Type	VERTICAL
Spindle Motor Power(kW)	4
Voltage	380V/50HZ
Dimension(L*W*H)	1700*1680*1880
Weight (KG)	2200
Warranty	2 years
Key Selling Points	Competitive Price
Applicable Industries	Building Material Shops, Manufacturing Plant, Energy & Mining
Showroom Location	Australia, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	2 years
Core Components	Motor, Pump, Gear, Engine
Standard Configuration 1	X/Y Axis Automatic Tool Feed
Standard Configuration 2	Integration Action Panel
Standard Configuration 3	Manual Oil Pump
Standard Configuration 4	Z Axis Electric Lift
Machine Tool Accessories 1	Milling Chuck
Machine Tool Accessories 2	7:24 Middle Set
Machine Tool Accessories 3	Horizontal Milling Arbor Assembly
Machine Tool Accessories 4	Single-head Spanner
Machine Tool Accessories 5	Anchor Bolts
Machine Tool Accessories6	Double-head Socket Wrench

Detailed Photos
· Powerful Tool Milling Machines;· Milling machine for tool construction;· Automatic feeds on all 3 axes;· Outer arbor supporting for horizontal milling;· Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;· Steamlined arrangement of operating controls on the right side;· Vertical head quill for drilling, with hand lever feed;· Quill stroke 80mm;· Central lubrication;· Hardened guideways;· The milling machine can be enquipped with Digital Position Indicator.
Packaging & Shipping
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.
FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to Domestic Market(65.00%),Western Europe(10.00%),Mid East(10.00%),Africa(3.00%),South America(2.00%),Eastern Europe(2.00%),South Asia(1.00%),Eastern Asia(1.00%),North America(1.00%),Oceania(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Southeast Asia(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Numerical Control Machine, Metal Cutting Machine Tool, Metal Forming Machine Tool, Machining Center, CNC Lathe
4. why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
