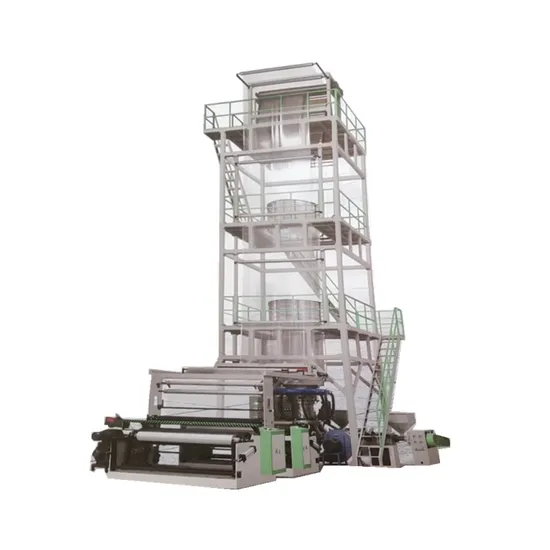

a+B+C Blown Film Extruder Machine Three Layer Plastic Film Blowing Machine

US$40,000.00-55,000.00 1 Set (MOQ)

Basic Info.

Model NO.
MD-3L
Type
Three-Layer Co-extrusion Film Blowing Machine
Raw Material
PE
Maximum Folding Width of Film
2000mm
Screw Diameter
65mm
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Colors
Green and White
Feeding Mode
Multiple Feed
Screw
Multi-Screw
Screw Channel Structure
Non Deep Screw
Product Type
Extrusion Molding Machine
Assembly Structure
Separate Type Extruder
Engagement System
Full Intermeshing
Exhaust
Exhaust
Model
MD-3L65
"Suitable Material"
LDPE LLDPE EVA HDPE
Max Film Width(mm)
2000
Film Thickness
Ld:0.015-0.15mm
Max Extrusion Outputhd
280kg/Hr
Transport Package
Export Standard Packing Type
Specification
CE, ISO9001, SGS
Trademark
Mingde
Origin
China
HS Code
8477300000
Production Capacity
10sets/Year

Product Description

Three Layer Film Blowing Machine (MD-3L) Our Advantages: 1. ISO 9001: 2000, GSG, SGS, CE, Production Assessment, Gold Supplier certificated 2. All machines will be examined and tested before delivery by 5 professional engineers (with more than 15 years machine experience) 3. Perfect after-sale system: We have more than 5 experienced technicians work abroad. 5. Yearly Production Capacity -- 200-300 sets 6. Prompt Reply Within 12 Hours RUIAN MINGDE Machinery Co., ltd. Has been the symbol of high quality and excellent service in machiery areas for many years, researched and developed our machines on basis of advanced technology introduced from developed countries. As a professional and experienced manufacturer in china, we're able to produce many kinds of machines like film blowing machine, bag making machine, paper bag machine, packing machine, printing machine and leather & shoe machines, ect.
Model MD-3L50 MD-3L55 MD-3L65
Suitable
Material		 LDPE LLDPE EVA HDPE LDPE LLDPE EVA HDPE LDPE LLDPE EVA HDPE
Max Film Width(mm) 1200 1500 2000
Film Thickness(mm) LD:0.015-0.15 LD:0.015-0.15 LD:0.015-0.15
Max Extrusion OutputHD 140kg/hr 200kg/hr 280kg/hr
Extrusion Unit
Gear Box 146/173/146 173/200/173 200*3
Screw Diameter(mm) φ50/55/50 φ55/65/55 φ65/65/65
Screw's Material 38 CRMOALA 38 CRMOALA 38 CRMOALA
Barrel's Material 38 CRMOALA 38 CRMOALA 38 CRMOALA
Barrel's Cooling Fan 370W*2*3 370W*2*3 370W*3*3
Thermo Control (zone) 3*3 3*3 4*3
Driving Motor (kw) 15/22/15 22/30/22 30/30/30
Extrusion Die
Die Size (mm) LD:φ250/300 LD:φ350/400 LD:φ500
Rotary Die Head(mm) 360°Continue Rotary 360°Continue Rotary 360°Continue Rotary
Screen Changer Manual Mechanics Screen Changer Manual Mechanics Screen Changer Manual Mechanics Screen Changer
Thermo Control(zone) 3 4 4
Air Ring 1 PCS 1 PCS 1 PCS
Cooling Blower(kw) 5.5 7.5 11
Take-up Unit
Roller Width (mm) φ165*1300 φ165*1600 φ190*2100
Take-UP Motor (kw) 1.5 1.5 2.2
Take-UP Speed(M/min) 5-60 5-60 5-60
Winding Unit
Type of Winder Surface Friction Double Winder Surface Friction Double Winder Surface Friction Double Winder
Roller Width (mm) 1300 1600 2100
Winding Motor 16N.M 1.5KW 1.5KW
Winding Speed(M/min) 5-60 5-60 5-60
Voltage 380V/50HZ/3PHASE 380V/50HZ/3PHASE 380V/50HZ/3PHASE
Cover Dimensins(m) 6.8*2.6*6.5 7.5*3.2*7.5 9*4.2*9

Optional Device: 1. Auto Loader 2. Corona 3. Automatic Air Supply Device New Type High Technologe We devote to produce the Best Machines!
