The principle of Comprehensive pigment dispel treatment instrument is using the selective laser photothermolysis and Q Switched laser blasting action principle, aim the precise dosage of energy which with a specific wavelength in a very short time at a specific structure of color bases :A The ink pigment particle, carbon particles and other exogenous and endogenous pigment melanin cell diseasein the dermis and epidermis . Using the extremely narrow pulse width, high peak power of laser, the pigment suddenly heated and blasting and will be broken into smaller particles, The crushed debris particles will be Out of the body after being Consumed by macrophages 'cause of Metabolism .
Pigment gradually fades, and finally disappeared after pigmented treatment periodically, and achieve the purpose of treatment.
Laser type

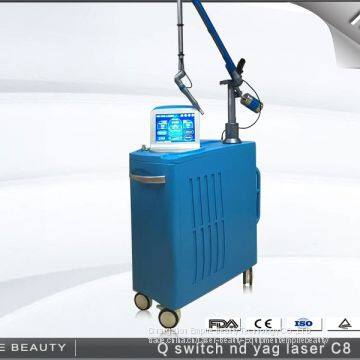

| Q-Switch ND YAG laser
|
Wavelength
| Double wavelength 1064nm, 532nm
|
Controller
| Touch screen display
|
Energy
| 1-1500mJ (1064nm); 1-800mJ (532nm)
|
Power
| 2500W
|
Width of pulses
| 6-12ns
|
Frequency
| 1--10
|
Diameter of spot
| 1-10mm adjustable
|
Beam of light transmission
| 7 articular-arm of light guide transmitting, transmission power is more than 75%
|
Indicator of aiming light
| Red semiconductor aiming light, wavelength 650-670nm
|
Cooling manner
| Closed-off water circulation + air
|
Voltage
| 220V / 110V
|
Packing size
| 100*54*100 cm
|
Weight
| 60kg
|
1. Ota removal
2. Birthmark removal
3. Chloasma removal
4. Tattoo removal
