High-Precision CNC Drilling Machine for Wooden Door Locks

Product Description

Technical Paremeters

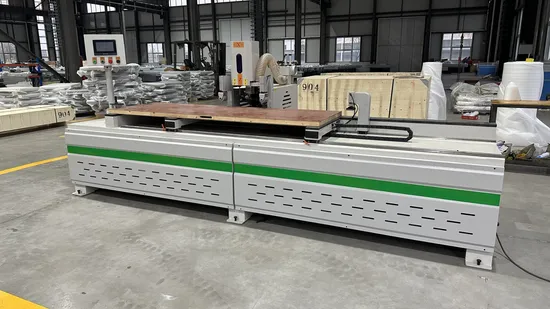

ZD1226 CNC DOOR LOCK MACHINE

Body size	3700*1700*1600mm
Weight	1000kg
Total motor power	14.5kw
Maximum milling slot length	2800mm
Maximum milling slot depth	130mm
Maximum milling slot width	80mm
Milling slot spindle speed	18000/r/min
Motor	Luotong WTD
Drive control system	Luolunchi
Side slot motor	6KW
Side square hole motor	2.2KW
Upper hole motor	2.2KW
Upper slot motor	2.2KW
Drive servo motor	750W+750+400W
Guide rail	ASK
Rack	Taiwan Ketai Precision Machinery
Inverter	Jiale
Reducer	Taiwan Ketai Precision Machinery

Product Details

Drill bag:
The machine uses the drilling bag to punch holes, and the structure of the upper and lower parts reflects the diversity of the drilling operation.
Work surface:
The machine work table is made of good material, it will not hurt the board when loading, and it will not wear easily when using for a long time.
Roller-assisted pressing when machining keyholes.
Application

Company Profile

Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.
About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you. Certifications
Exhibitions

Our customer feedback

FAQ

FAQ
Q1: ARE YOU A MANUFACTURER?
A1:Yes.We have 20 years manufacture and export exprience.
Q2: ABOUT THE MOQ
A2: 1 set, and we are OEM,I will give you the competitive price better than market.
Q3: MAY I BUY A SAMPLE?
A3: Of course ,sample order is welcome.
Q4: HOW CAN I PLACE A ORDER?
A4: Just give me your nice inquiry,l will do my best to assist you.
Q5: IF IWANT CHEAPER QUALITY, CAN YOU PRODUCE?A5.Yes, just send us your quality details, such as the material, what cheaper partsinstead etc, we will do that as your request and calculate the price.
Q6: IF IORDER BIG QUANTITY, WHAT'S THE GOOD PRICE?
A6: Please send the details enquiry to us, such as the ltem Number, Quantity for eachitem, Quality request, Logo, Payment Terms, Transport method, Discharge place etc.We will make the accurate quotation to you as soon as possible.

---
