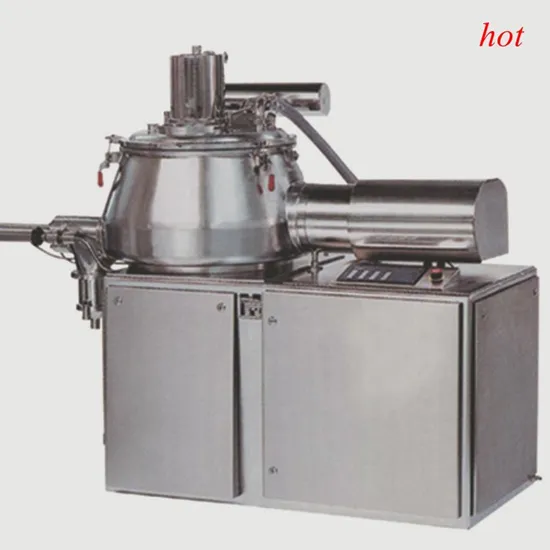

Ghl-10 Series 5 Kg/Batch Output High Shear Wet Mixing Granulator for Pharmaceutical

Product Description

GHL series high-speed mixer for battery materials
Product Description
Principle
The Ultra - fine powder very short the bottom rotating and additives are uniformly mixed in a time in the cylinder by the specially - made impeller at of the cylinder and - made high speed knife set at the side of the wall of the cylinder the specially.

Features
☆The machine adopts specially - designed structure , the structure is reasonable , easy to operate it .
☆The sealing system is specially - designed to ensure that the ultra - fine not enter into the drive parts or motor .
☆The machine is equipped with the cooling system ( specially - made air swiping system .)
☆The absorber for this machine is specially - designed to ensure that the ultra - fine not leak from the vessel and ensure there is no positive pressure inside the vessel .
☆There has the strict safety measurement for the whole
operation system of the this machine .
Product Parameters

Technical parameters (Standard Type)
Type	10	50	150	200	250	300	400	600
capacity (L)	10	50	150	200	250	300	400	600
output (kg/batch)	5	20	80	100	130	180	250	300
mixing speed(rpm)	200 - 600	200~500	200 - 500	120-380	120~350	120~300	120-300	120-- 300
cuting speed (rpm)	1500/2900
compressed air consumption(m3/min)	0.6	0.6	0.9	1.0	1.0	1.2	1.5	1.8
mixing power (kw)	4.0	7.5	15	18.5	22	22	30	45
cuting power (kwi)	1.1	3.0	4.0	5.5	5.5	7.5	15	22

Overal dimensions

Type	A×B(mm)	C(mm)	D(mm)	H(mm)
10	1000x650	700	350	1300
50	1700x750	750	550	1550
150	2050x1000	850	750	2100
200	2400x1400	950	800	2400
250	2450x1450	950	850	2400
300	2500x1450	1000	900	2450
400	2500x1450	1000	950	2450
600	2700x1700	1300	1100	3200

Our Advantages
Application
Company Profile

Certifications
Packaging & Shipping
FAQ 1. Are you a manufacturer , trading company or a third party
Answer: We are professional manufacturer ,together with the trading business . we have started our production on 1970 based on the right of state .it became private company in 1995
2. Where is your factory located
Answer: Our company is located in Zhenglu Town,Tanning district ,Changzhou city ,Jiansu province,China .it is in the middle of Shanghai and Nanjing .
3. How can I go to your factory ?
Answer: You can fly to shanghai pudong or hong qiao international airport directly ,and then take the high speed train or bus to Changzhou station and then we can pick you up at changzhou station for our company . Our company is around 30~40km away from the changzhou station.
If you are in China now , you can fly to Changzhou Benniu airport or Wuxi airport ,or take the train or bus to our city directly .
We sincerely welcome to visit our company at any time.
4. What's your mini order ?
Answer: Our mini order is one set .
5. Is there any certificate of YIBU ?
Answer: Yes, we got ISO9001:2008 Quality Management System Certificate,ISO14001:2004 Environmental Management System Certificate, CE;SGS;TUV;GOST;UL;EAC also we got 60 item patent.
6. Is the machine easy to performance update?
Answer: YES. YIBU adopt the modularity design technology .YIBU can improve the dryer performance to extend the dryer's long time service. Our dryer is easy to disassemble, clean and maintenance.

---
