High Quality Cement Production Ball Mill

Product Description

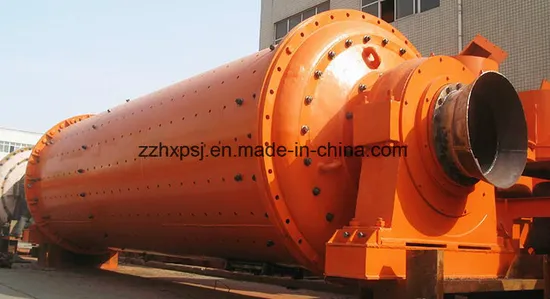

High Quality Cement Production Ball Mill
Cement Ball mill Application:
Ball Mill is an efficient tool for grinding many materials into fine powder.
Ball mill is widely used in building material, chemical industry, etc. There are two ways of grinding: The dry ball mill grinding and the wet ball mill grinding
Principle of Cement ball mill :
Cement ball mill is also called cement ball mill, cement miller. Cement mill grinding media is steel ball. As the cement mill machine has two warehouses with different specifications of steel balls, the materials through the hollow axis into the first warehouse to get rough grinding and then enter into the second warehouse to get further grinding. And finally, the fine powder will be discharged form the cement mill. The grinding medias grind and crush the material due to the centrifugal force. When the cement mill body rotates, the steel balls adhere the body to a certain height and then fall down to grind the materials.
Ball Mill Main Unique Features:
1) The motor matched the ball mill can be reduces by 18%-25%, comprehensive energy saving more than 20%.
2) The customers don't need change the main bearing at least 10 year so that can save a lot of maintenance ball mill costs and ball mill work time.
3) The main bearing adopts grease lubrication, which can be protected from heavy metal pollution
4) The whole processing is smooth and reliable
Cement Ball mill parameter:

Model (m)	Capacity(t/h)	Form of mill	Form of transmission	Power (kw)	Reduction drive		Weight(t)
					Type	Rate
Φ2.2x7	8-0	Open	Edge	380	ZD70	5	54
Φ2.2x7.5	10-11	Open	Edge	380	ZD70	5	63
Φ2.2x8	10-12	Open	Edge	380	ZD70	5	65
Φ2.2x9.5	14-16	Open	Edge	475	ZD70	5	70
Φ2.4x10	19-19	Open	Edge	630	JR75	5.64	94.5
Φ2.4x11	19-21	Open	Edge	630	RZD80	6.3	99.2
Φ2.4x13	21-23	Open	Edge	800	MBY710	7.1	115.2
Φ2.6x13	28-32	Open	Edge	1000	MBY800	7.1	148
Φ2.6x13	28-32	Open	Center	1000	MFY100	19.5	101.73
Φ3x12	32-35	Open	Edge	1250	MBY900	7.1	168.6
Φ3x13	34-37	Open	Edge	1400	MBY900	7.1	172.26
Φ3.2x13	45-50	Open	Edge	1600	MBY1000	7.1	196.26
Φ3.8x13	60-62	Open	Center	2500	MFY250	16.5	204
Φ4.2x13	85-87	Open	Center	3530	JQS3550	15.6	254

Cement ball mill production site :
Cement ball mill shipping:
Welcome to visit our factory, we sincerely look forward to cooperating with you. We will provide you with the most suitable products with the reasonable price!

---
