US$10,000.00-15,000.00
|
1 Set
(MOQ)
|
Basic Info.
Type
Linear Edge Banding Machine
Automatic Grade
Automatic
Panel Feeding Speed
20m/min
Manufacturing Principles
Glue Tank Overhead
After-sales Service
1 Year
Edge Banding Machine Color
White
Work Piece Thickness
10-55mm
Corner Trimming Power
0.37kw*2
Transport Package
5500*1000*1600mm
Specification
5700*1000*1600mm
Production Capacity
25sets/Month
Product Description
We supply high quality Veneer Slitting Machine Product show
Product Parameters
| Model | HZH368D |
| Edge thickness | 0.4-3mm |
| Work piece thickness | 10-55mm |
| Panel length | >120mm |
| Panel width | >55mm |
| Feeding speed | 18-22m/min |
| Glue power | 0.75kw |
| End cutting | 0.37kw*2 |
| Rough milling | 0.75kw*2 |
| Fine milling | 0.75kw*2 |
| Corner trimming power | 0.37kw*2 |
| Buffing | 0.37kw*2 |
| Conveyor belt | 4kw |
| Lifting power | 0.37kw |
| Total power | 12.5kw |
| Working pressure | 0.6Mpa |
| Outline size | 5700x900x1700mm |
| Net Weight | 2100kg |
Product Description

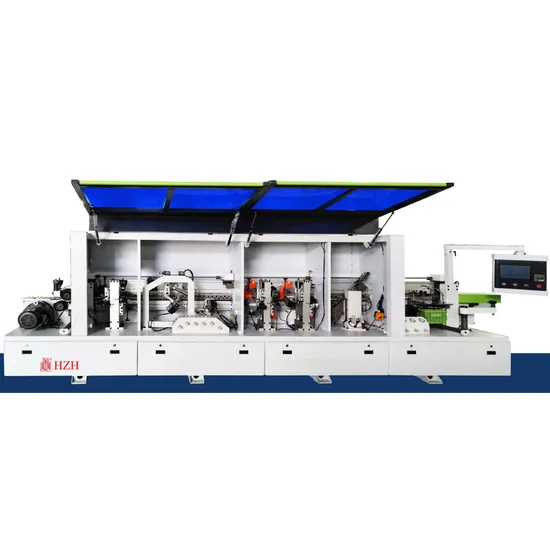

Full Automatic Woodworking Furniture PVC Veneer Corner Rounding Trimming Edge Banding Bander Machine.
Strength: Taiwan Yonghong brand PLC display screen
CNC Machine body cutting, paint powder coating
Product Details
Glue
End Cutting
Rough Trimming
Fine Trimming
Corner Trimming
Scrapping
Buffing
Company Profile
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.
We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
Our website is sanding machine.en.made-in-china.com; you could get more information about our company and our products.
