High Coating Efficiency Bp-400 Push-Type Arc Spray Equipment Zinc Metal Wire Arc Spray Coating Machine Arc Welding Machine

Product Description

Product Description

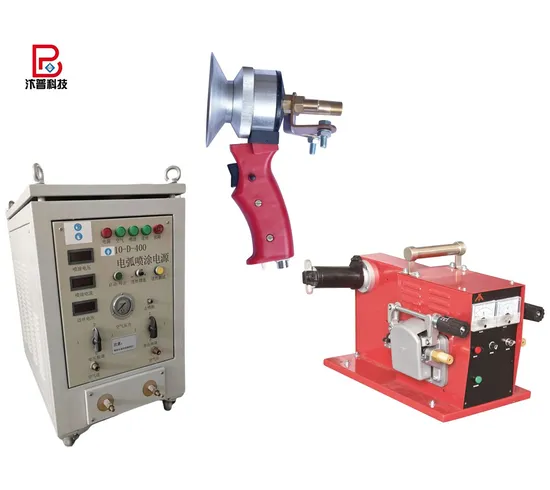

* The arc spray gun can be manual operated or fixed on machine tool.
* Arc spray equipment is mainly used for large-area anti-corrosion and wear of steel structure or repairing the surface of
machine parts processing errors. and also spraying conductive coating. Mainly spraying Zinc and Aluminum materials.
* The wire feeding trolley is suitable for pulling arc spray equipment, which is convenient for outside large workpiece
construction. The max. wire is Ø 300 ×Ø 50 × 103mm, single wire reel is 20kg.
*The power supply is Siemens controller with one-button operation.
Detailed Photos

Product Parameters
BP-400 PUSH-TYPE Arc Spray Equipment Parameters:

No	Power supply	BP10-400-D
1	Feeding Wire Voltage & Current	DC24V 5A
2	Feeding Wire Type	Double wire feeder
3	Dia. Of Wire	Ø 3.0mm
4	Max. Wire Coil	Ø 300×Ø 50×Ø103mm
5	Weight of Wire Coil	20KG
6	Speed of feeding wire	1-7m/Min
7	Control system	Siemens controller
8	wire feed control	High power module circuit
9	Transformer	copper coil
10	communication	can connect with manipulator or atuomatic equipment
11	Display	Digital spraying parameters
12	On/off	one-click start-stop on power or spray gun
13	Dimmession	600×460×850mm
14	Weight	215kg
15	Insulation grade	E

Company Profile
SHANGHAI BIANPU TECHNOLOGY CO.,LTD
We are specialized in production of all kinds of spraying equipment and the technology application for surface coating treatment for over 15 years in China. We provide professional coating technology services and automatic production of turnkey project, such as spraying equipment, spraying soundproof room, spraying auxiliary equipment, manipulators, dust collection and pretreatment sandblasting system. Our Company has a group of experienced and professional technicians in coating processing and construction of turnkey projects.
Main Equipment:
Thermal Spraying Equipment( Plasma spraying, HVOF spraying, Arc Spraying), Auxiliary Equipment( Spraying soundproof room, Dust collection system, Rotary table, Six-axis manipulator, Sandblasting system), Automatic production of turnkey project.
Coating Processing Service:
Wear-resistant, High temperature resistance, Anti-corrosion, Insulation, Magnetic inductive, Self-lubricating wear sealing, anti-stick and wear-resistant, repair coating.
