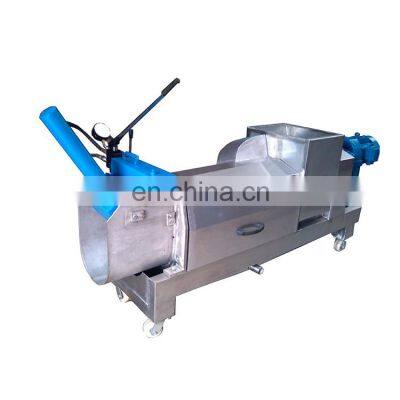

Trade Assurance New technology China Manufacturing Grape juice press machine | grape squeezing machine Product Description
Feature of grape squeezing machine
1.all kinds of bran, sea buckthorn fruit, ginger (to be broken), bamboo shoots and other fruit and vegetable juice;
2.lees after fermentation of rice bran, sawdust, wood fiber, bagasse, tea slag dewatering; through anaerobic fermentation of cassava residue after dehydration; Gynostemma, Ula grass, celery, the dregs (non-smooth), etc. dehydration; Sweet sorghum, wheat straw, rice straw, reeds, etc. dehydration;
3. garbage and other environmental industries dewatering.
4.The pressure can be adjusted easily.
Application of grape squeezing machine :
This machine is used for containing a certain fiber or have a sticky solidliquid separation of the macrocosm materials. Such as grape skin residue after
fermentation , ginger, spinach, rubber, Chinese herbal medicine, winter date, tea contains ,a certain fiber materials to extract dehydration or juice, and also
used to sea buckthorn continuously make fruit juice except the branches or contain a few sprigs , the mesh specially made according to the size of the
sea buckthorn fruit .
Working principle and structure of grape squeezing machine :
It is the screwtype press.The working process is the conveying screw pushthe material which will enter the workbin into screw press,decreased by
squeezing screw pitch and diameter of axle, and under the action ofcone resistance and screen wall, make the material of the liquid (juice)
will be squeezed out. Squeeze the liquid outflow from the mesh, concentrated in the juice in the bucket. The pomace after squeezing,
conversion between the end of the cylindrical screen and conical bodyeduction,conical spring loaded at the back of the body, by adjusting the
spring pretightening force and position, can change the size of the resistanceand slag notch, used to adjust the squeezing degree of dry and wet.
Note: The feeding box and sieve tube and screw of this machine adopt high-quality acid and alkali resistant 304 stainless steel materials.
model
| TZZJ-1.5
| TZZJ-3
| TZZJ-5
| TZZJ-10
| TZZJ-15
|
production capacity
| 0.2-1.5t/h
| 0.5-2t/h
| 2-6t/h
| 3-10t/h
| 5-16t/h
|
Convey screw
| diameter
| 260mm
| 350mm
| 420mm
| 500mm
| 600mm
|
| screw pitch
| 150mm
| 200mm
| 210mm
| 280mm
| 280mm
|
|
rotate speed
| 5-15r/min
| 5-15r/min
| 5-15r/min
| 5-15r/min
| 5-15r/min
|
Screw press
| diameter
| 260mm
| 350mm
| 420mm
| 416mm
| 600mm
|
| rotate speed
| 5-15r/min
| 5-15r/min
| 5-15r/min
| 5-15r/min
| 5-15r/min
|
oil cylinder
| diameter
| Adjust by the spring
| Adjust by the spring
| 50mm
| 63mm
| 70mm
|
| float
|
|
| 200mm
| 320mm
| 400mm
|
Motor power
| 5.5kw
| 7.5kw
| 7.5kw+0.37kw
| 11kw+0.37kw
| 18.5kw+0.37kw
|
Sieve diameter
| 270mm
| 270mm
| 430mm
| 510mm
| 510mm
|
Sieve hole diameter
| 1.5mm
| 1.5mm
| 2.0*40mm
| 2.0*40mm
| 2.0*40mm
|
Hydraulic pressure
|
|
| ≤6Mpa
| ≤6Mpa
| ≤6Mpa
|
Working pressure
|
|
| 1-3Mpa
| 1-3Mpa
| 1-3Mpa
|
dimension
| 2200*600*900
| 3500*700*1000
| 3580*1000*1470
| 3740*1100*1650
| 4500*1100*1650
|
weight
| 650kg
| 1200kg
| 2500kg
| 2950kg
| 4200kg
|
Machine line from our customer :
