High Precision Manual Lathe CH1440K Conventional Lathe

Product Description

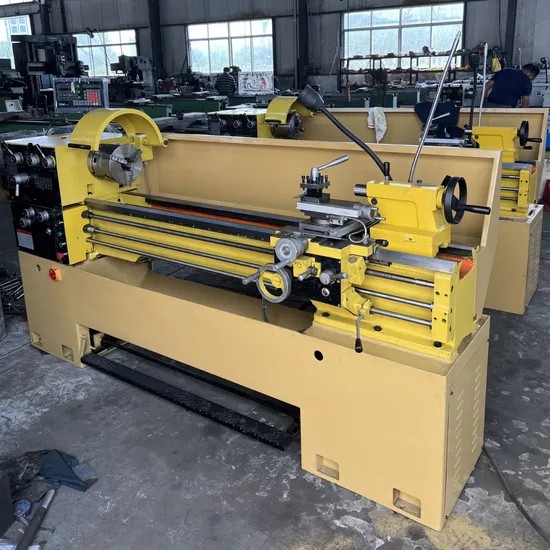

Product Picture

Specification Parameter

Items	Specification	Unit	CH1440K	CH1460K	CH1440KA	CH1460KA
Processing capacity	Max. swing over bed	mm	360
	Max. swing over cross slide	mm	210
	Max. swing overgap diameter	mm	508
	Effective length in gap	mm	180
	Distance between centers	mm	1000	1500	1000	1500
	Width of bed	mm	260
Headstock	Spindle bore	mm	40		52
	Spindle nose		ISO-D4		ISO-D6
	Spindle taper		MT5		MT6
	Range of spindle speed	r/min	12steps, 40-1800
Feed box	Longitudinal metric feeds	mm/rev	37 kinds, 0.043-0.653
	Cross metric feeds	mm/rev	37 kinds, 0.024-0.359
	Metric threads range	/	37 kinds, 0.4-7mm
	Inch threads range		28kinds, 4-56T.P.I
	Main screw dia.	mm	22
	Main screw pitch		4mm or 8T.P.I
Carriage	Max. Travel of top slide	mm	95
	Max. Traval of cross slide	mm	180
	Max. section of of tool	mm	16*16
Tailstock	Quill diameter	mm	45
	Quill taper	/	MT3
	Quill travel	mm	120
Motor	Main motor power	kw	2.2		3
	Coolant pump motor	W	90
Packing size	(L*W*H)	cm	200*75*165cm (1000mm) 250*75*165cm (1500mm)
Net /gross	weight	kg	1050/1300	1300/1600	1100/1350	1350/1650

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
