Waste Consumer Plastic Hdldpe PP Bottles Films Woven Bags Recycling Washing Machine

Product Description

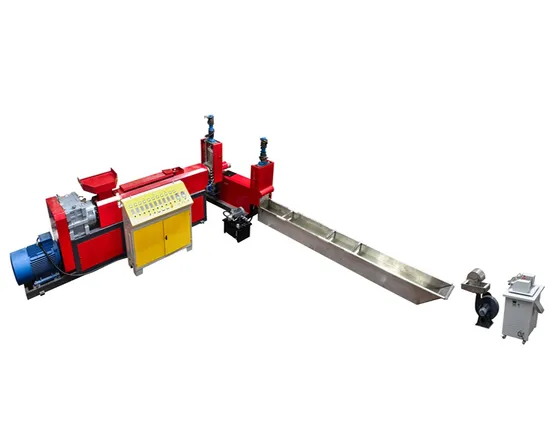

Recycled plastic machine, waste plastic recycling machine
This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE, and PP, etc.
It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.
The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same
Discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance,
And favorable economic benefit.
1. Main Technical Variables:
ModelSJ-B90SJ-B100SJ-B110SJ-B120
Type Diameter of Screw Stem φ 90φ 100φ 110φ 120
Major Diameter Ratio of Screw StemL/D 20: 1 L/D 20: 1 L/D 20: 1L/D 20: 1
Rational Speed of Screw Stem10-100r/min10-100r/min10-100r/min10-100r/min
Main Motor Power22kw30kw37kw45kw
Output68kg/h95kg/h120kg/h135kg/h
Weight of overall(kg) 2600kg2800kg3000kg3200kg
Cover dimensions (l× W× H) (mm)4000× 1500× 18004000× 1500× 18004000× 1500× 18004000× 1500× 1800

Model	SJ-90	SJ-100	SJ-110	SJ-120
Diameter of ScrewStem	85mm	95mm	105mm	110mm
Major Diameter Ratio of Screw Stem	20:1-22:1(L/D)	20:1-22:1(L/D)	20:1-22:1(L/D)	20:1-22:1(L/D)
Rationl Speed of Screw	10-110rpm	10-110rpm	10-110rpm	10-110rpm
Main Motor Power	22kw	30kw	30kw	37kw
Output	60kg/h	90kg/h	110kg/h	130kg/h
Machine Weight	2t	2.1t	2.2t	2.5t
Overail Dimensions(LxWxH)	5800*1500*1100	5900*1300*1200	6000*1350*1300	6200*1400*1350

---
