Double Roll Crusher Used for Crushing Medium or Low Hardness Mines and Rocks

Product Description

Product Description

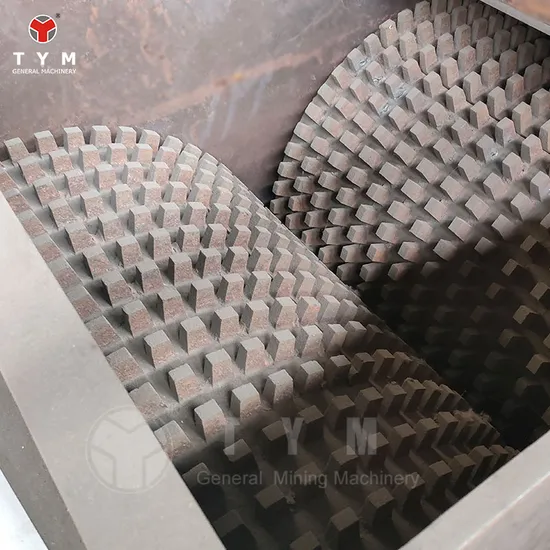

Double Teeth Roller Crusher
The hydraulic twin-roll crusher,two roller teeth roller crusehr has upgraded the commonly used spring twin-roll sand-making machine, and the hydraulic cylinder is used as the pressure output. The main innovation of the hydraulic roller crusher is to change the old spring into a hydraulic device. The old spring roller sander needs to manually adjust the spring pressure after using for a period of time to meet the requirements of the finished product. The fully automatic hydraulic roller sander is automatically adjusted, will automatically supplement the pressure, and the pressure is more accurate. In addition to different pressure structures, the structure and working principle of the hydraulic twin-roll crusher are the same elsewhere. Their main components are still composed of two rollers. Twin roll tooth roller crusher features The hydraulic roller crusher is driven by two motors, so it has full power The most important highlight of the hydraulic roller sander is that the discharge can be adjusted, and the user can adjust and control the discharge of the crusher according to the needs of its own finished materials,the roller using life is more than 1 year.
Twin roll tooth roller crusher working principle The twin-roll crusher will crush the crushed material through the feed inlet and fall between the two rollers for crushing, and the finished material will fall naturally.
In case of hard or unbreakable objects, the roller can automatically retreat by the action of hydraulic cylinder or spring, so as to increase the roller gap, and the hard or unbreakable objects fall down, thus protecting the machine from damage.
There is a certain gap between the two rolls rotating in opposite direction, and the discharge particle size can be controlled by changing the gap.

Technical Parameter

Model	Feeding Size(mm)	Capacity(t/h)					Blower motor(kw)	Weight(t)	Overall dimension(mm)
		Output Size(mm)
		12	30	50	75	125
2PGC400*250	100-200	12	20	30			2*5.5	1300	930*720*2050
2PGC450*500	80-150 150-300	18	35	80 50	75		2*11	3135	3050*1500*1020
2PGC500*600	80-150 150-300	30	50	105 70	85		2*15	3500	3050*1600*1020
2PGC450*900	80-150 150-300	42	68	145 85	110		2*22	5100	3050*1900*1020
2PGC450*1200	80-150 150-300	58	90	180 100	125	150	2*30	5900	3050*2200*1020
2PGC600*750	80-150 150-300	60	80	185 90	120	180	2*18.5	6100	4000*2050*1020
2PGC600*900	80-150 200-400	80	110	205 110	150	205	2*30	8600	4000*2300*1020
2PGC600*1200	80-150 200-400	110	130	130 150	180	250	2*37	10500	4000*2600*1020
2PGC900*900	80-150 200-400	100	140	220 155	220	300	2*37	11500	5020*2200*1220
2PGC900*1200	80-150 200-400	130	160	250 180	250	350	2*45	14500	5020*2500*1220

Our Customers Site
Our factory is specialized in the production of Raymond grinding mill for more than 20 years, is the leading brand in the industry. We have accumulated rich practical experience, and the case sites cover more than 30 countries in the world, including mining, cement, metallurgy, chemical, construction waste and other fields. We can provide EPC project general contracting and other complete solutions.
This is our Kaolin grinding mill site in Thailand!
The customer's requirements:
Raw material: Kaolin, capacity: 3 tons/hour, finished products: 325mesh. Equipment configuration: MTW110. Company Information
Since in 2004, Zhengzhou General Mining Machinery Co.,Ltd has been the professional manufacturer of Grinding Mill, crushers and sand making machines,etc. TYM is committed to helping more users around the world to obtain higher profits and faster return on value. Our main products are European Version Grinding Mill, Raymond Grinding Mill, High Pressure Suspension Roller Mill, Micro-powder Grinding Mill, Jaw Crushers, Impact Crushers, Hammer Crusher, Compound Crushers, Ball Mill, nine series of products with more than 30 kinds of specifications.
Our factoryOur factory covers an area of 120,000 square meters and manufactures TYM brand Mining Machinery,has passed international ISO:9001, GOST and CE certification.
Packing & Shipping
The package of all equipment is accord with the standard protective measures.The packing is suitable for short and long distance transportation. The moisture proof, quake proof, protected against dampness, and rustproof protection measures were taken to ensure the machine shipping to customers safely. All the machine will be packaged by plastic film.
Certifications
Our Services
Warranty
100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance, but not exceed 15 months from date on which machine leaves the factory.
Pre-sale services:
(1) Device model choice.(2) According to customer's special requirements, design and manufacture of products.(3) Training technical personnel for clients.(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program.
Sale services:
We will send technicians to you for guiding the equipment installation and commissioning and staff training.
Sales tracking :
(1) product acceptance.(2) to help customers develop construction programs.
After-sale services :
(1) Guiding customers' installation.(2) On-site training of operators.(3) Complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.

---
