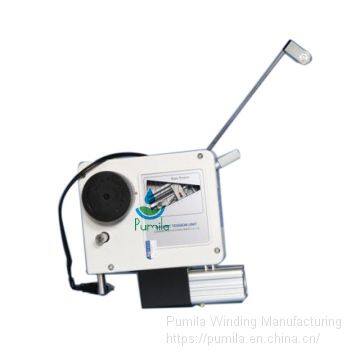

Coil Winding Tensioner/ Magnetic Tensioner/Magnetic tension controller/MTQ

Product Details

Product Description

Model	Applied wire diamiter(mm)	Tension scope(g)
MTQ-30	φ0.02-φ0.06	3-30
MTQ-100	φ0.04-φ0.12	10-100
MTQ-200	φ0.06-φ0.16	20-200
MTQ-400	φ0.08-φ0.25	50-400
MTQ-600	φ0.12φ-0.35	80-600
MTQ-800	φ0.14-φ0.40	100-800
MTQ-1200	φ0.20-φ0.50	200-1200

Product feature
1.Please read the product instruction carefully before using.
2.Working pressure: 5kg/cm2
3.If not use for a long time, when the damping wheel jitter, before starting please turn to the degaussing process: first close wise and then counterclockwise to adjust tension from maximum to minimum to complete the degaussing.
4.When debugging, first adjust the tension to the scale position, and then adjust the Anti-back tension adjustment knob to make the tension rod under the green logo (slightly lower than level state)
5.The reason for the tesion:
1) The wool pre-tension is not enough which need adjusted.
2) The O-ring and the wool felt is dirty, need to be cleaned or replaced.
6.During normal working, the tension can be adjusted from small to large (clockwise). But from large to small (conterclosewise) is prohibited. Otherwise may cause breakage.
When replace wool felt please follow the original thickness and size, otherwise will lead to the unsmooth of the wire winding.
Note:
1.Please reading the product instruction carefully before using;
2.If long time without using. When the damping wheel jitter, before starting please turning to degaussing process first clockwise and then counterclockwise tension adjuster to adjust the maximum to the minimum to complete the degaussing.
3.When debugging, first adjust the tension to the scale position, and then adjust the Anti-back tension, adjustment knob makes the tension rod under the green logo(slightly lower than the level state)
4.The reason for the tension can't adjust:
Hang line diagram
1)The wool pre-tighten is not enough need to be adjust it;
2)The O-Ring and the wool felt is too dirty need to be clean ot replace.
5.Normally working the tension can be adjusted from small to large (clockwise), prohibit the tension by major to small (counterclockwise), otherwise cause breakage.
6.When replace Wool felt please according to the thickness and size with the factory, or it will cause the wire not smoothly.
