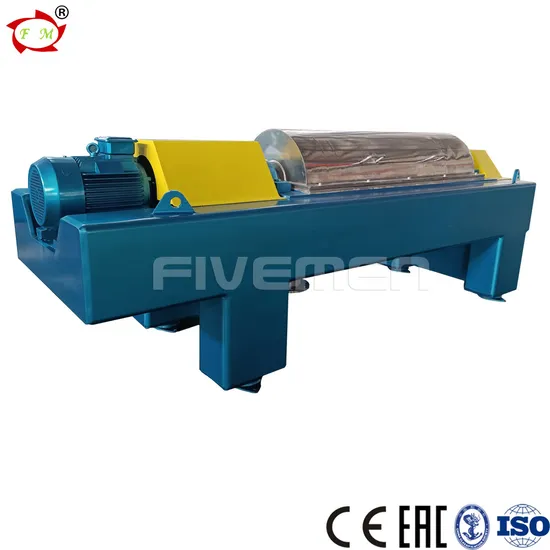

Lw Pilot Decanter Centrifuge Application in Fruit Juice, Tea, Coffee, Red Wine Production Separation

Product Description

Instruction
The decanter centrifuges used in the pharmacy, food and beverage industries shall have high separating factors so as to ensure minimum residue content in the separated liquid and minimum liquid content inside the residue, and achieve higher yields; the machines shall meet the health requirements, have a structure easy for cleaning, preferable automatic cleaning; the substances used in the pharmacy, food and beverage industries are general acidic, and the machine cleaning liquids are alkaline, which requires that the machine parts in contact with the substance cater must meet this requirement.; the machines generally run in continuous twenty four hours, shall not have faults in the working process otherwise the substances will deteriorate, which requires the machines are highly reliable.
Deslagging of fruit and vegetable juices and animal oils, dehydration of soybean protein isolate, yeast ,Concentration of fish protein, dehydration of wheat starch B, deslagging of soy milk, clarification of edible pigments.
Reference standard

1. Main standard of the national machinery industry.
JB/T502-2004 "spiral discharge sedimentation centrifuge"
JB/T9095-1995 "centrifuge, separator forgings, welding conventional NDT technology standard"
2. The national main standard
GB10894-89 "separation machinery noise sound power level measurement engineering method"
Appication:
1) City tap water, domestic sludge dewatering;
2) Oil drilling mud dewatering;
3) Sludge Oil Recovery;
4) Fruit juice separation
4) Refinery sludge concentrated dehydration;
5) Distiller 's grains dehydration;
6) Paper, printing and dyeing wastewater separation;
7) Medical sludge dewatering;
8) Soy protein dehydration;
9) Plant oil clarification and separation;
10) Cosmetic clarification and separation;
11) Bleaching powder separation.
Parameters :
2 phase Decanter Centrifuge:

Type	Bowl diameter(mm)	Bowl length/ Bowl diameter	Bowl speed (r/min)	Main Power(Kw)
LW180	180	2.5-720	6000	3-5.5
LW260	260	3.0-4	5000	7.5-11
LW355	355	2-4.5	4000	11-30
LW420	420	3-4.1	3600	18.5-37
LW450	450	2-4.4	3600	18.5-37
LW480	480	2-4.2	3200	18.5-45
LW500	500	2-4.2	3200	18.5-55
LW530	530	2-4	3200	22-55
LW580	580	2-4	2800	30-55
LW620	620	2-4	2800	37-110
LW760	760	2-3.5	2500	55-132
Note: In case of differences between the table and the user manual, the latter shall prevail.

3 phase Decanter Centrifuge:

Type	Bowl diameter(mm)	Bowl length/ Bowl diameter	Bowl speed (r/min)	Main Power(KW)
LWS355	355	3.3-4.5	4000	15-18.5
LWS420	420	4.1	3600	22
LWS500	500	4.2	3000	30
LWS530	500	4.2	3000	30
LWS580	580	4.1	2800	45
LWS620	620	4	2800	45
Note: In case of differences between the table and the user manual, the latter shall prevail.
