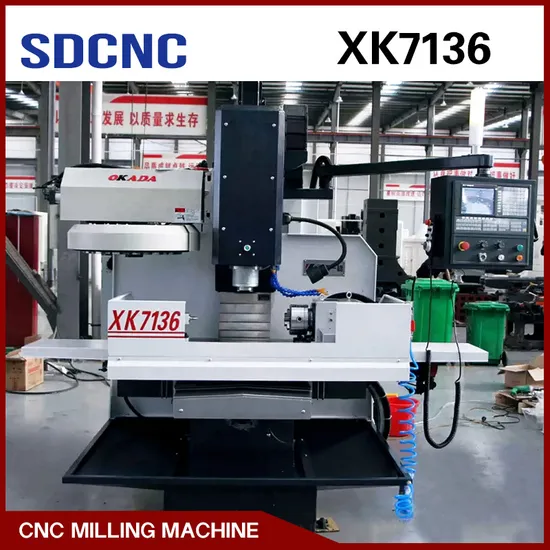

CNC Milling Machine From China with Budget-Friendly Xk7136

Product Description

CNC milling machine	XK7124	XK7126	XK7132	XK7136
Table size	800x240	800X260mm	800x320	1250x360
Max. table load	200kg	200kg	300kg	400kg
T slot qty-width*distance	3-14x75	3-14x75	3-14x110	3-14x80
spindle speed	60-8000 r p m	60-8000 r p m	60-8000 r p m	60-8000 r p m
spindle nose to table surface	60-460	125-500mm	125-520mm	120-580
Spindle center to Column surface	300	315mm	360	460
Spindle taper	BT30	BT30/BT40	BT30/BT40	BT40
Main motor power	3.7kw(servo)	3.7kw (servo)	3.7kw (servo)	3.7kw (servo)
X axis travel	400mm	460mm	500mm	900mm
Y axis travel	240mm	300mm	320mm	360mm
Z axis travel	400mm	400mm	400mm	460mm
X/Y/Z axis rapid feed	6m/min	8/8/6m/min	8/8/6m/min	5/5/4m/min
Positioning accuracy	±0.01mm	±0.01mm	±0.01mm	±0.01mm
Repeatabeility accuracy	±0.005mm	±0.005mm	±0.005mm	±0.005mm
Net Weight	1800kg	22000 kg	2650kg	2800kg
Overall Dimension	1840x1520x2000	1900X1620X2000	1900x1800x2100	2220x1850x2250

Company Profile
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.
Our Advantages

Product Description

Packaging & Shipping

FAQ

---
