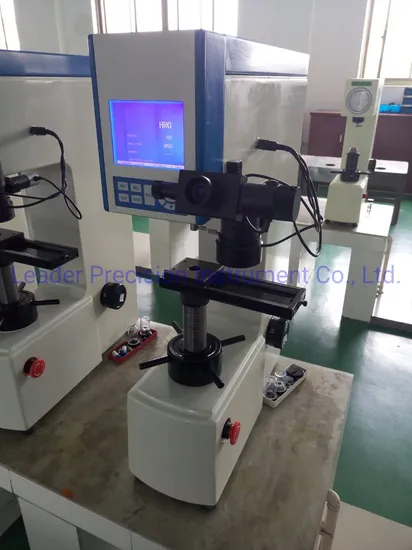

LCD Display Digital Universal Hardness Tester with RS-232c Data Output (HBRV-187.5D)

Product Description

LCD Display Digital Multi-function Hardness Tester With RS-232C Data Output (HBRV-187.5D)
Usage Universal hardness tester also known as brinell hardness tester, multi-function hardness tester,universal hardness tester can measure different kinds of hardness. Universal hardness tester is the complex of brinell hardness tester,rockwell hardness tester and vickers hardness tester. Compound hardness tester is the high-level hardness tester in the market at present.
HBRV-187.5D Digital Universal Hardness Tester is with full function, easy operation, clear display and intuitive and stable performance. it is a light in one of the high-tech mechanical and electrical products, Brinell, Rockwell, Vickers three test methods to test, with a multifunction seven test force hardness tester, hardness testing can meet a variety of needs. Test force loading, dwell, unloading automatic switching, simple and fast to operate.

Features
1. Digital LCD reading of Brinell, Rockwell and Vickers scales
2. Moving table between indenter and measuring microscope
3. Magnification by objective lenses 37.5x and 75x
4. Integrated printer for test result and statistics
5. RS-232C interface is available
Specifications

Product name	Digital Universal Hardness Tester
Model	HBRV-187.5D
Hardness parameters	Rockwell, Brinell, Vickers
Optics	Eyepiece magnification 15X
Magnification of microscope	Brinell:37.5x; Vickers:75x
Rockwell test loads	60kgf(588.4N), 100kgf(980.7N), 150kgf(1471N)
Brinell test loads	31.25kgf(306.5N),62.5kgf(612.9N),187.5kgf(1839N)
Vickers test loads	30kgf(294.2N), 100kgf(980.7N)
Dwell time	0-60S
Hardness indication	Digital LCD display
Resolution	0.1HR
Loading control	Automatic
Data output	RS-232C and built-in printer
Max. height of specimen	Rockwell:170mm; Brinell, Vickers:140mm
Instrument throat	165mm
Dimension (L*W*H)	520 x240 x700mm
Packing size	630 x440 x960mm
Gross/Net weight	120kg/90kg
Power supply	220V or 110V AC, 50 or 60Hz
Accuracy	Conforms to EN-ISO 6506 ,6507,6508, ASTM E18,ASTM E10 and ASTM E92, GB/T230.2, GB/T231.2, GB/T 4340.2

Standard Delivery 1. Main unit
2. Thermal printer
3. Diamond Rockwell indenter
4. Vickers indenter
5. Rockwell ball indenter 1/16" 6. Brinell ball indenter Ø2.5, Ø5mm
7. Digital eyepiece 15x
8. Brinell objective 2.5x
9. Vickers objective 5x 10. Large flat anvil Ø150
11. Small flat anvil Ø60
12. V-anvil Ø40
13. Hardness test blocks
14. Adjustable feet 15. Accessories case
16. Anti-dust cover
17. Instruments certificate
18. Installation & user manual

---
