High Precision, Grinding machine for Special Purpose

Product Description

Product Parameters

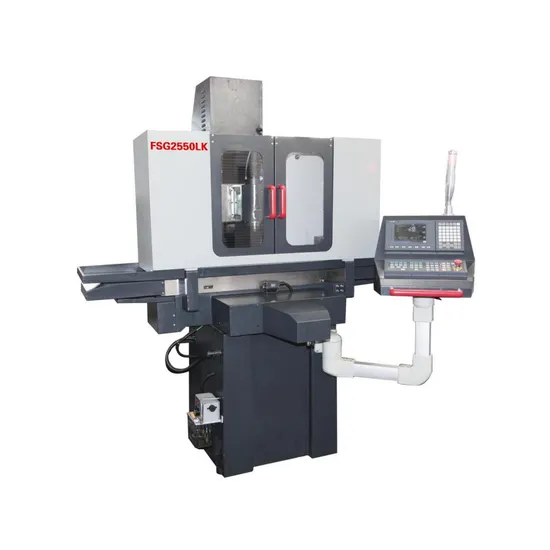

FSG series Slider grinder
Specifications

ITEM/MODEL			FSG-2550LK	FSG-3080LK
	Table size	mm	254*508	306*800
	Magnetic chuck size	mm	250*500	300*800
	Max.distance from spindle end face to table	mm	280	440
	Max. loading capacity(include chuck)	kg	180	270
	Cross Motion		Table dependent motion	Column dependent motion
	Auto down feed rate	mm/t	0.001-0.02	0.001-0.05
	Rapid down speed	mm/min	0-1000	0-1000
	Feed of MPG	mm/div	0.001	0.001
	Longitudinal Motion
	Rapid speed	mm/min	0-15000	0-15000
	Feed of MPG	mm/div	0.001	0.001
	Vertical Motion
	Auto down feed rate	mm/t	-	-
	Rapid down speed	mm/min	0-1000	0-1000
	Feed of MPG	mm/div	0.001	0.001
	Spindle rotating speed	r/min	36000 (50HZ)	36000 (50HZ)
	Grind wheel size	mm		according to work piece size
	Spindle motor power	kw	6	6
	Diamond dressing roller motor	kw	0.08	0.08
	Spindle water cooling pump	kw	1.45	1.45
	Coolant pump	kw	0.125	0.125
	Floor space (L*W*H)	mm	2300*1600*1675	3200*2000*2100
	Gross weight	kg	2000	3300
	Package size (L*W*H)	mm	2000*2100*2150	3500*2250*2150

Slider grinder
Company Profile
Who We Are?
Founded on March 30, 2016, HANMING aims to provide customers with excellent products and services and industrial complete equipment solutions.
HANMING has always been standing in the perspective of every customer to deal with problems and ensure the timely and efficient handling of problems. Our salesmen are experienced senior marketing engineers who have been working in the industry field for many years, and our inspectors are technical engineers, which ensure our professionalism. Our products are mainly metal cutting machine, metal forming machine and other industrial equipment.
What Do We Can Do?
The core competitiveness of HANMING is having a strict quality management system and a team that can provide excellent services. We are familiar with the machine tool industry in China and know the positioning of products in various factories. We will select the most suitable machine tools for customers and ensure that after the completion of the machine tool, we will send quality control team to each factory for inspection to ensure that the machines delivered to customers are high-quality products that have been inspected. Our inspectors are also after-sales service personnel to ensure that every after-sales service problem can be timely communicated with each factory and give timely feedback.
Our Aim:
Relying on the keen market insight, HANMING makes forward-looking decisions on the changeable market and actively deals with and overcomes the difficulties encountered by the enterprise in various periods. Today, a steady and pragmatic team leads Hanming forward to open up a new world in the industrial export industry.

---
