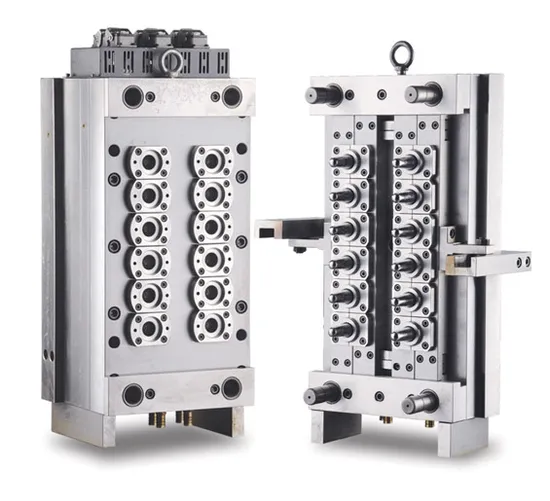

Factory Custom Multi-Cavity Customized Hot Runner 24 48 64 72 Cavities Pet Preform Mould

Product Description

Product Name and Plastic PET preform mold core cavity lip cavity neck thread making
Core & Cavity Steel :
2316#steel,S136 stainless steel or based on customer's requirement.
Mould base & Standard Component :
DME,HASCO,MISUMI,LKM,Self-made with P20, 3CR13, 4CR13 material etc.
Steel hardness :
HRC30-35 for base material.
HRC45-48 for core and cavity material.
HRC60-62 for special parts material
Plastic material :
PET, PP, ABS, PC, AS, TRITAN etc.
Cavity Number :
1*4, 1*6, 1*8, 1*12, 1*16, 1*24, 1*32, 1*48 etc
Injection System :
Pnuematic Valve gate with shut off & free-cut or short tail or long tail etc
Ejector System :
Mould slider + Stripper plate ejection
PET preform Mold Feature
1. Mold plates are P20 steel with pre-hardening process. Core, cavity and neck screw are made of S136 high Strength, anti-corrosive stainless steel. Mold plate is completed by one-time processing to ensure the concentricity of molding hole and guide bush, guaranteeing the compact structure of mold.
2. Spiral cooling design for each single core and cavity, it helps to lessen the cycle time, improving production efficiency and savign costs. Opening/closing pulling plate adopts bearing slide type to drop the preform with realiable structure.And it is a highly integrated process of slider, pushing plate and ejection. All sliding parts surface inlaid self-lubricating copper alloys to ensure low friction effecient and strong wear-resistant.
3. Self- lock individually for each cavity to guarantee high precision and less defect of the final preform production and also convenient disassembly.
4. Off-center adjustment system to ensure preform thickness difference < 0.10mm. Adopting double cone positioning principle guarantees high manufacturing precision to ensure the product without appearing flash, different size, irregular and other defects.
5. Experienced designers design preform mold with the help of computer according to the final bottle shape; Preform thickness and height is reasonably and perfectly designed to ensure the final bottles weight light but feel hard.
6. Hot runner valve gate is available; No need to cut preform tail and it would save labor costs. Standard inter-changeable mold components for easier replacement.
7. Hot runner system: China advanced brand or imported hot runner system brand such as Yudo/Mastip/Hasco etc.Each cavity has independent temperature control and heater system.It will prevent the white defects on the preform and improve the qualtiy of plastic products. Advanced hot runner system assures lower level of AA value.
8. Customer service: one year free warranty, life-long technical support service.

Mold	24 48 72 cavity PET Preform Mold Can Be Customized
Preform Neck	28mm,30mm
Preform Weight	Customized
Runner	Hot Runner
Core Material	S136
Cavity Material	S136
Screw Neck Material	S136
Mold Base	4CR13 Steel
Mold Life	5 millions
scope of Application	Water bottle
Delivery time	60-70 days

------Our Partner------

------AFQ------

Q1 :What kinds of product you supply?
A1: Sticker Labeling Machine,Shrink Sleeves Labeling Machine, Shrink Wrapping Machine, Injection Molding Machine, Blowing Machine, Filling Machine, Packaging Machine, Plastic Products, etc.
Q2: How to tell your enquiry?
A2: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.

---
