TPS62262TDRVRQ1 switch regulator TI original from stock

Product Details

Product Description

Product Description

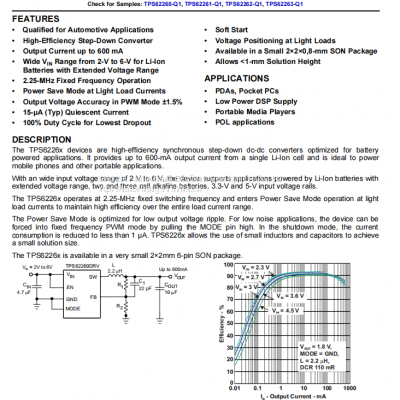

Characteristics of TPS62262-Q1
Qualified for Automotive Applications
High-Efficiency Step-Down Converter
Output Current up to 600 mA
Wide VIN Range from 2-V to 6-V for Li-Ion Batteries with
Extended Voltage Range
2.25-MHz Fixed Frequency Operation
Power Save Mode at Light Load Currents
Output Voltage Accuracy in PWM Mode ±1.5%
15-µA (Typ) Quiescent Current
100% Duty Cycle for Lowest Dropout
Soft Start
Voltage Positioning at Light Loads
Available in a Small 2 × two × 0,8-mm SON Package
Allows <1-mm Solution Height
APPLICATIONS
PDAs, Pocket PCs
Low Power DSP Supply
Portable Media Players
POL applications
Description of TPS62262-Q1
The TPS6226x devices are high-efficiency synchronous step-down dc-dc converters optimized for battery powered applications. It provides up to 600-mA output current from a single Li-Ion cell and is ideal to power mobile phones and other portable applications.
With an wide input voltage range of 2 V to 6 V, the device supports applications powered by Li-Ion batteries with extended voltage range, two and three cell alkaline batteries, 3.3-V and 5-V input voltage rails.
The TPS6226x operates at 2.25-MHz fixed switching frequency and enters Power Save Mode operation at light load currents to maintain high efficiency over the entire load current range.
The Power Save Mode is optimized for low output voltage ripple. For low noise applications, the device can be forced into fixed frequency PWM mode by pulling the MODE pin high. In the shutdown mode, the current consumption is reduced to less than 1 µA. TPS6226x allows the use of small inductors and capacitors to achieve a small solution size.
The TPS6226x is available in a very small 2 × 2mm 6-pin SON package.

---
